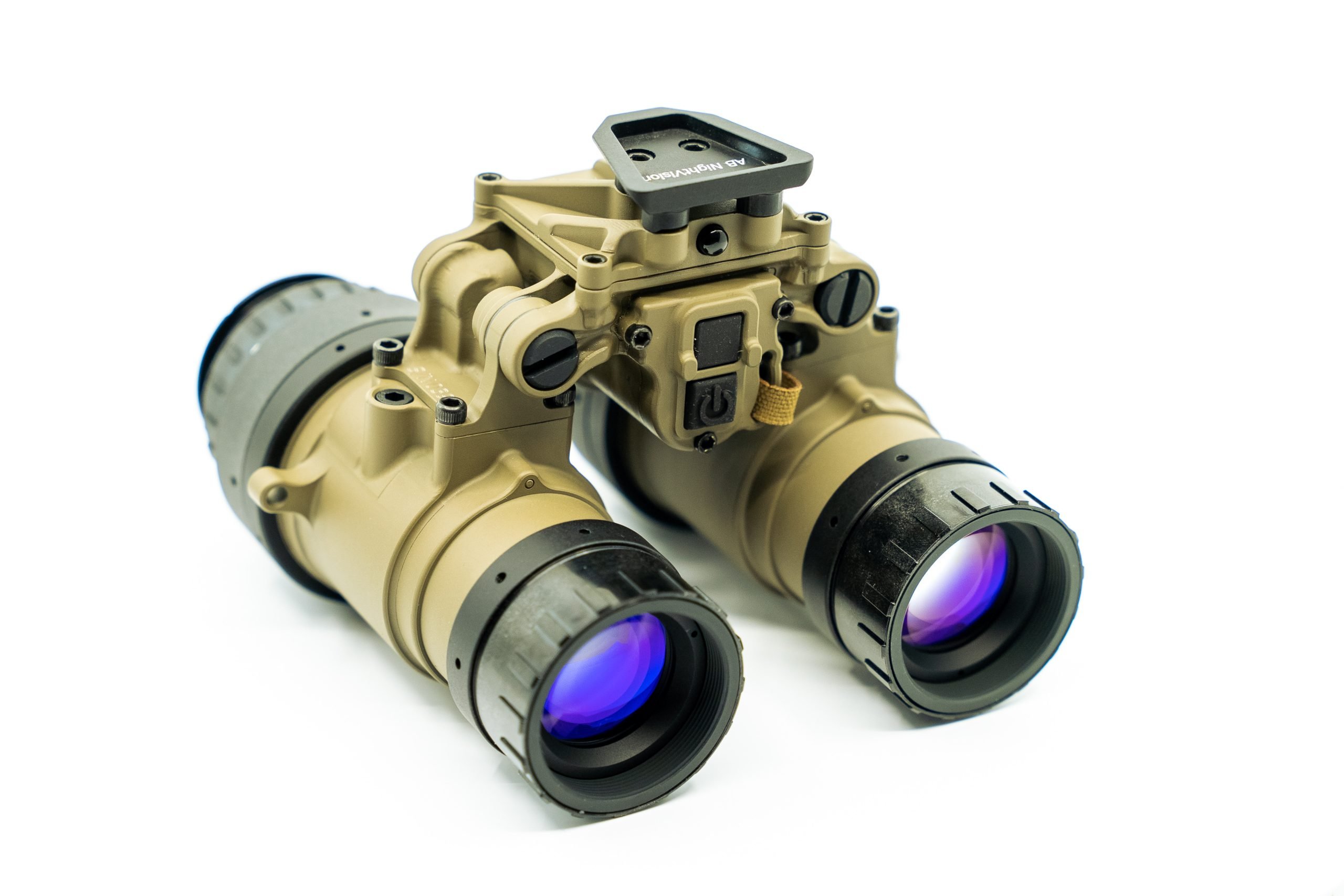

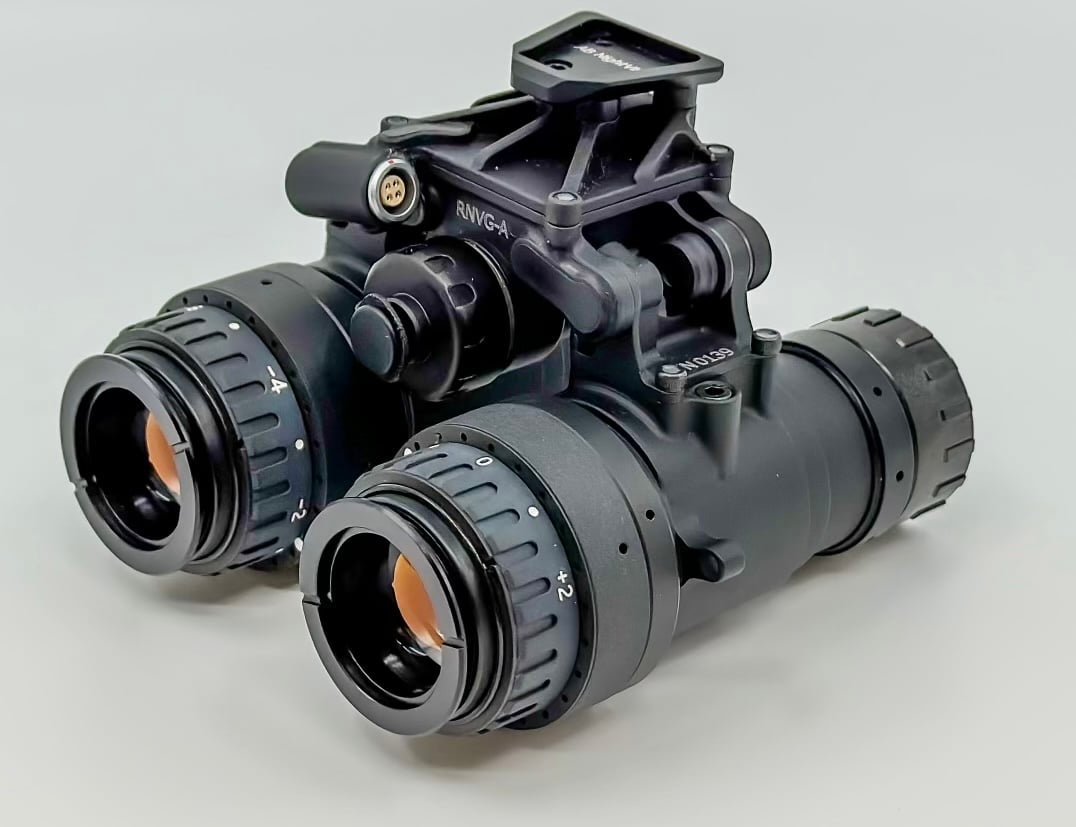

AB Night Vision RNVG-A/ ARNVG Complete Articulating Ruggedized Night Vision Goggle

The RNVG-A, also known as ARNVG, (Articulating Ruggedized Night Vision Goggle) is an extremely tough, full featured night vision binocular. The housing is billet machined from aircraft grade aluminum and designed to handle challenging real-world environments. During drop testing the housings far exceeded military requirements of MIL-STD-810H drop testing, surviving falls onto bare concrete from heights beyond what lenses and image intensifiers can handle. The RNVG utilizes a single CR123A battery, but also comes with an on board auxiliary LEMO port for use with battery packs, such as the AB Night Vision Inc Ground Optimized Battery Pack.

We offer the AB Night Vision ARNVG with the following tube options:

L3Harris 20UA Filmless White Phosphor – Aviation Spec Supergain

L3Harris 20UA Filmless White Phosphor – Aviation Spec

Elbit White Phosphor XLSH

Elbit White Phosphor PH 2000-2376 FOM

Photonis Echo White Phosphor

Handpicked Option – Select this if you want US to select intensifier tubes for you instead of selecting a set from our inventory. We will contact you (typically within 24-48 hours of placing your order) with pictures and specs of tubes we select to ask for your approval. If you have preferences on certain specs (ie: SNR, EBI etc…) please include those in your order notes and we will do our best to meet your goal. After customer tube approval the night vision unit will be ready to ship within 1 to 3 business days.

We offer three choices of Optics

Standard Mil Spec Optics

Rochester Precision Optics (RPO) 3.0 Ultralight

Photonis Defense Boomslang 50 Degree FOV

The RNVG-A design includes push button switches for power and an Infrared Illuminator. The IR illuminator button is guarded by a fence with distinctive contours to prevent inadvertently activating the IR illuminator. Indicators in the viewing area alert the user if the IR illuminator is on, or if the unit senses a low battery condition. AB Night Vision RNVG-A optics feature a full range of adjustments. The mil-spec objectives allow the user to focus between 9.8 inches and infinity, while the mil-spec eyepieces offer a diopter adjustment range of -6 to +2. The articulating design allows the user to quickly adjust for an Interpupillary Distance from 47mm to over 80mm.

Each optical pod can be rotated up out of the users view as desired, freeing one or both eyes for natural sight as conditions demand. When the goggle is helmet mounted and in the stowed position, the optical pods can be folded back flat against the helmet to minimize neck strain and better protect the goggle, and the user, from impacting overhead objects. The optical pods automatically turn off when articulated up. This feature prevents illumination on your helmet when one side is articulated up and ensures that the image intensifiers are ‘off’ in the stowed position with the optical pods folded back against the helmet. The force required to swing the optical pods is user adjustable using a coin.

The goggle is available in Flat Black and Flat Dark Earth. The components of the binocular are media blasted to give a non-reflective matte finish, then black anodized for durability. For the FDE option, Cerakote, a proven firearms finish, is applied over the anodizing to give a tough, attractive finish.

RNVG-A BINOCULAR SPECIFICATIONS:

POWER SOURCE: (1) CR123 SIZE BATTERY

FOCUS RANGE: 9.8” TO INFINITY

OPERATION TIME: APPROXIMATELY 16 HOURS ON LITHIUM BATTERY

MAGNIFICATION: (1X) ONE POWER

FIELD OF VIEW: 40 DEGREES

INTERPUPILLARY ADJUSTMENT: 47mm to over 80mm

DIOPTER ADJUSTMENT: -6 TO +2

EYE RELIEF: 25MM

WEIGHT: 170g housing, 567g with Std Mil-spec optics and L3 tubes, no battery

DIMENSIONS: 4.14” X 4.2” X 3.2”

IR ILLUMINATOR: BUILT IN

WATER RESISTANCE: SUBMERSIBLE TO 66 FT

IR LED & LOW BATTERY INDICATORS: YES

INTENSIFIER TUBES: COMPATIBLE WITH MX-10160 STYLE

OPTICS: COMPATIBLE WITH PVS-14 EYEPIECE AND OBJECTIVE

WARRANTY: 5 YEARS ON HOUSING PARTS AND SERVICE PER POLICY
