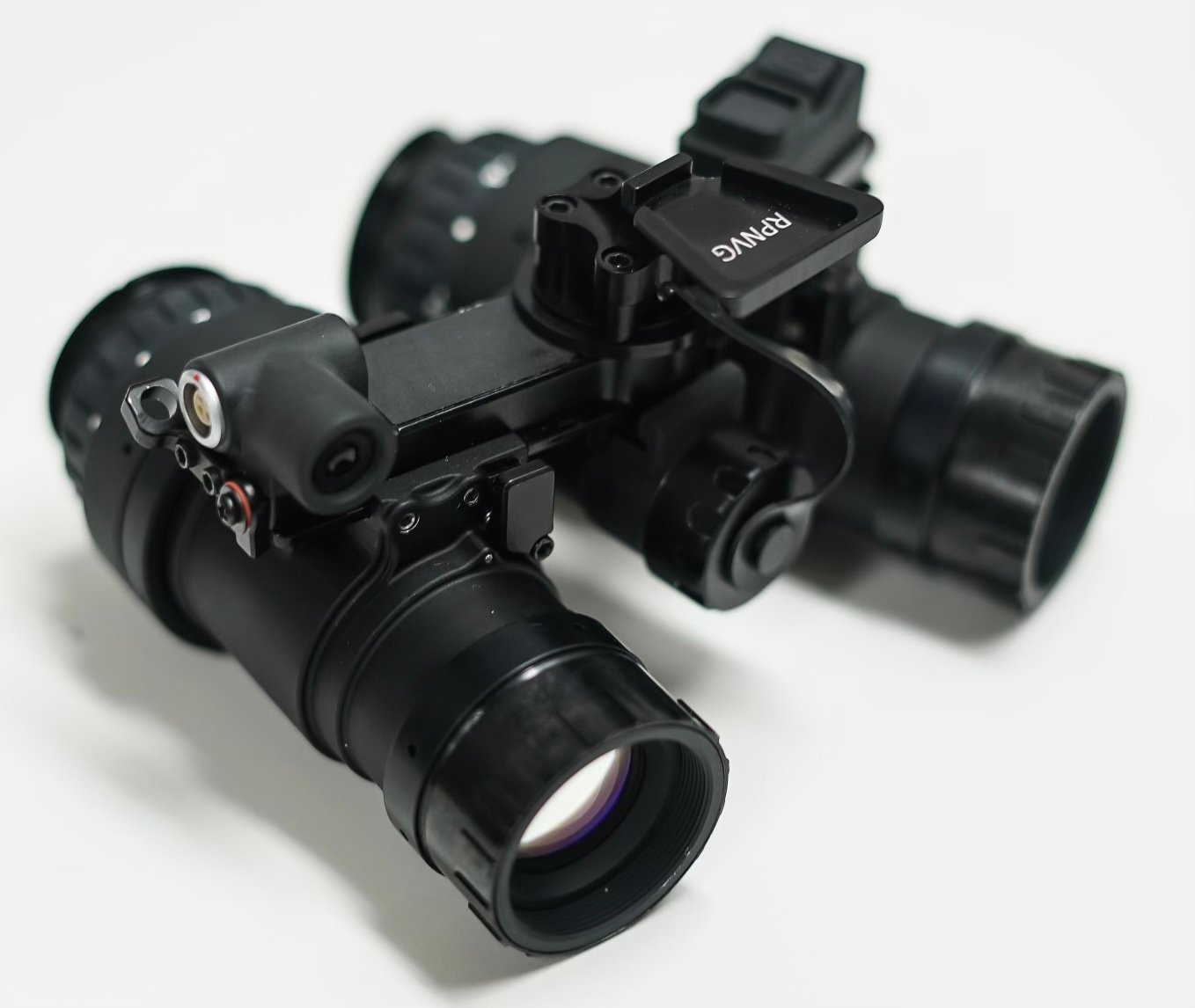

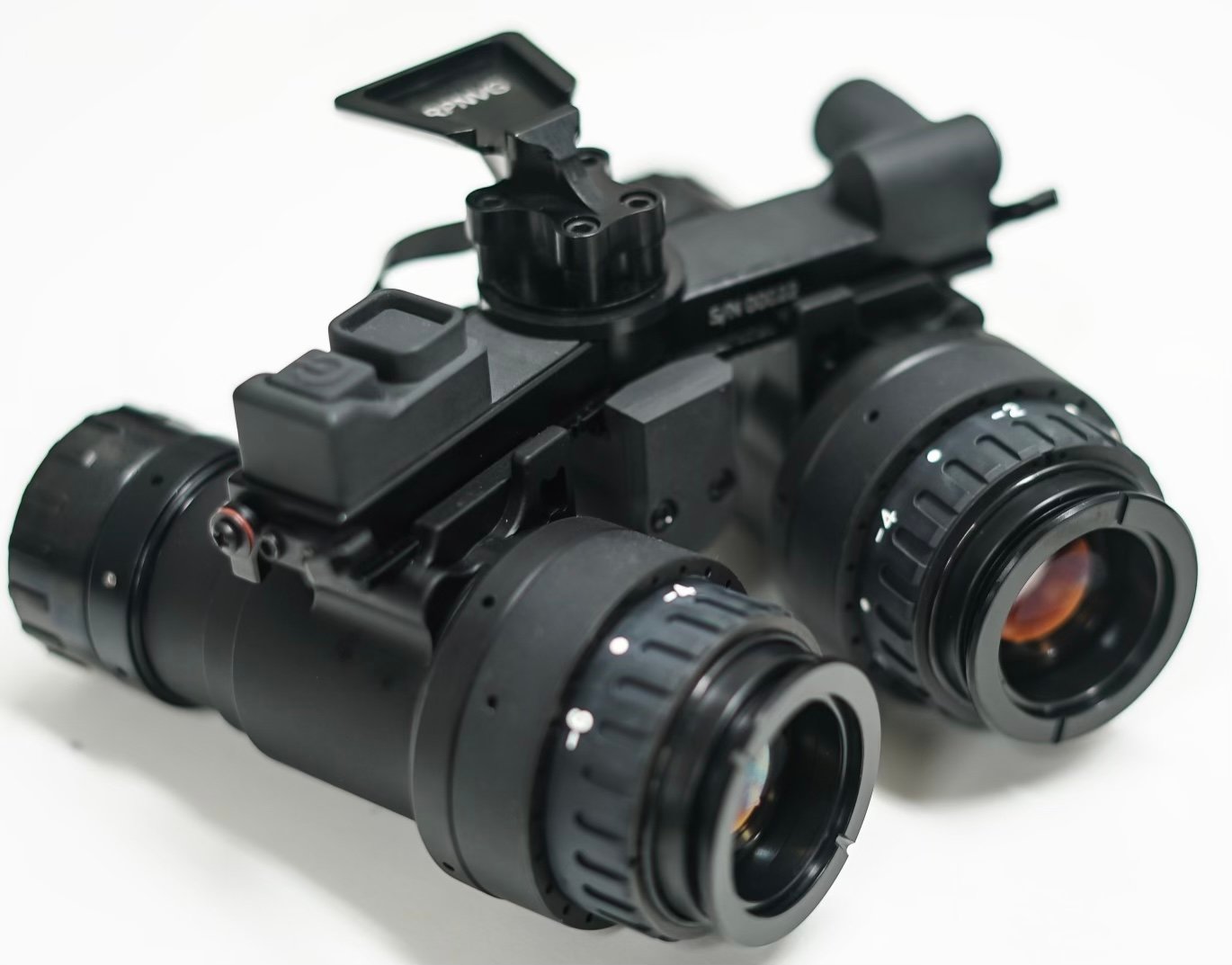

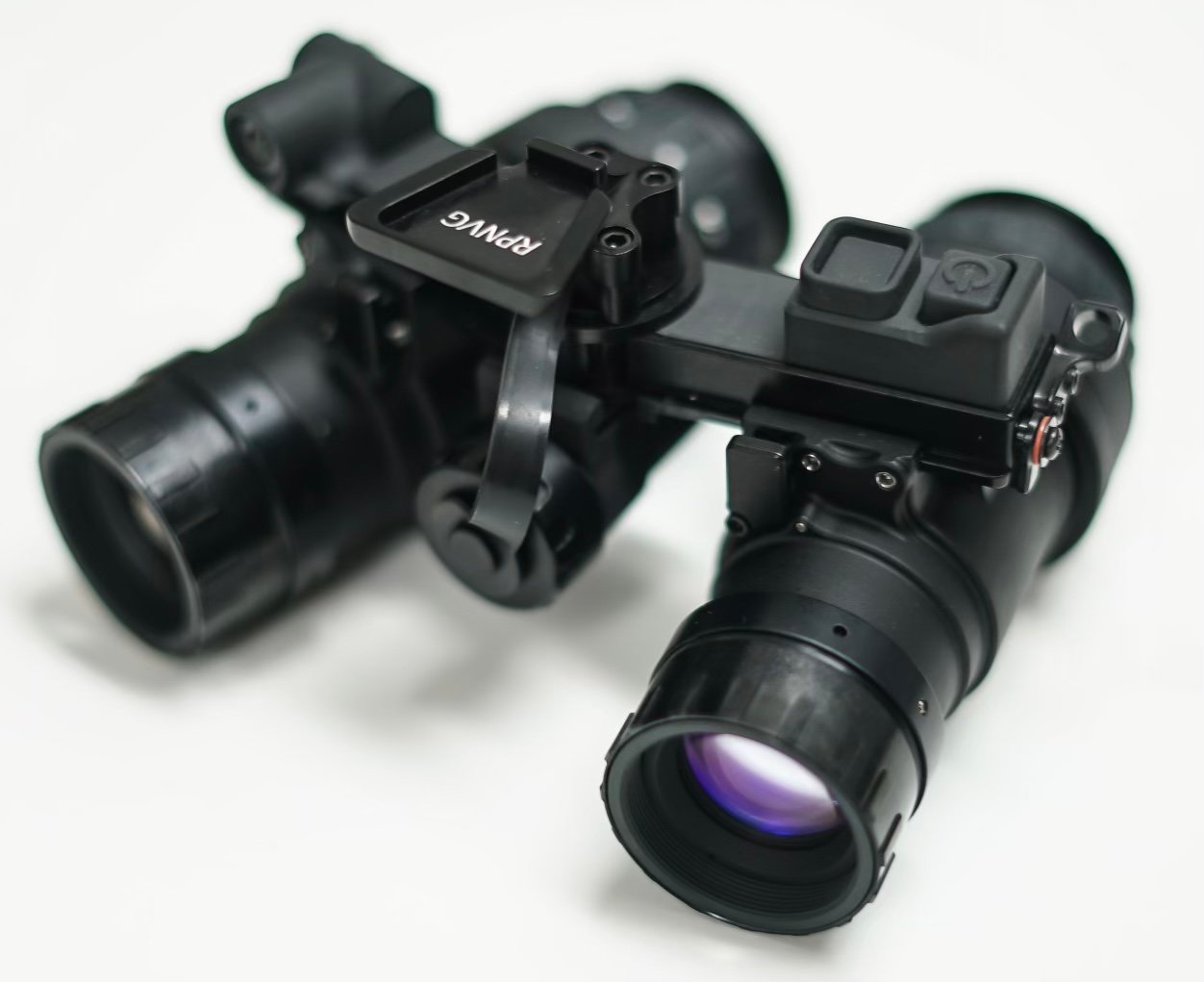

AB Night Vision RPNVG – Ruggedized Panning Night Vision Goggle

The Rugged Panning Night Vision Goggle (RPNVG) is machined out of 7075 aluminum and maintains the familiarity of the AN/PVS-14 controls with a single power switch that allows the device to be turned on, off, and allowing the use of a single output IR Illuminator. The RPNVG allows you increase the Field of View from 40 degrees to 65 degrees. The RPNVG pods can be removed without tools to act as a monocular and the pods can be swapped to either side.

The RPNVG utilizes a single CR123A battery, but also comes with an on board auxiliary LEMO port for use with battery packs, such as the AB Night Vision Inc Ground Optimized Battery Pack. This goggle also features Interpupillary adjustment points that allows the user to adjust the pod location to perfectly line up with your eyes.

We offer the RPNVG with L3, Elbit and Photonis tubes. Actual specs and photos of each in stock unit are in the drop down menus (please note: color shade of blue/green is due to photo lighting, all tubes will actually be the same light blue in color).

Handpicked Option – Select this if you want US to select intensifier tubes for you instead of selecting a set from our inventory. We will contact you (typically within 24-48 hours of placing your order) with pictures and specs of tubes we select to ask for your approval. If you have preferences on certain specs (ie: SNR, EBI etc…) please include those in your order notes and we will do our best to meet your goal. After customer tube approval the night vision unit will be ready to ship within 1 to 3 business days.

We offer three choices of Optics

Standard Mil Spec Optics

Rochester Precision Optics (RPO) 3.0 Ultralight

Photonis Defense Boomslang 50 Degree FOV

RPNVG TECHNICAL SPECIFICATIONS

Field of View 40°-65°

Magnification 1x

Diopter Adjustment -6 to +2 Diopters

Eye Relief 25mm

Submersible 66 feet

Objective Lens 27mm, f/1.2

Focus Range 9.8″ to infinity

Power Source 1 CR123 Size Battery

Operation Time 16 hours

Weight 621 g (21.9 oz)
