AB Night Vision RVM-14 Aluminum Night Vision Monocular

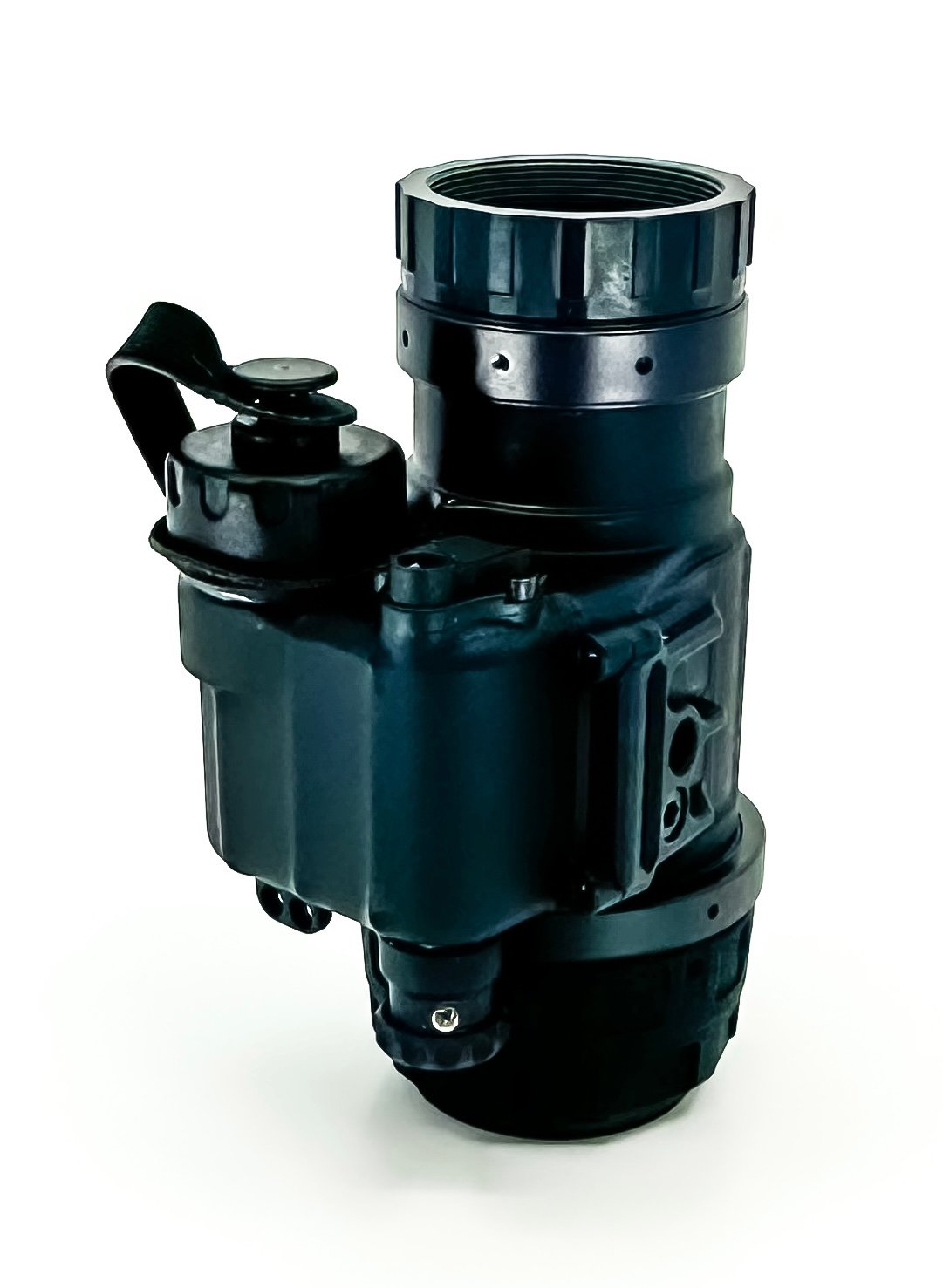

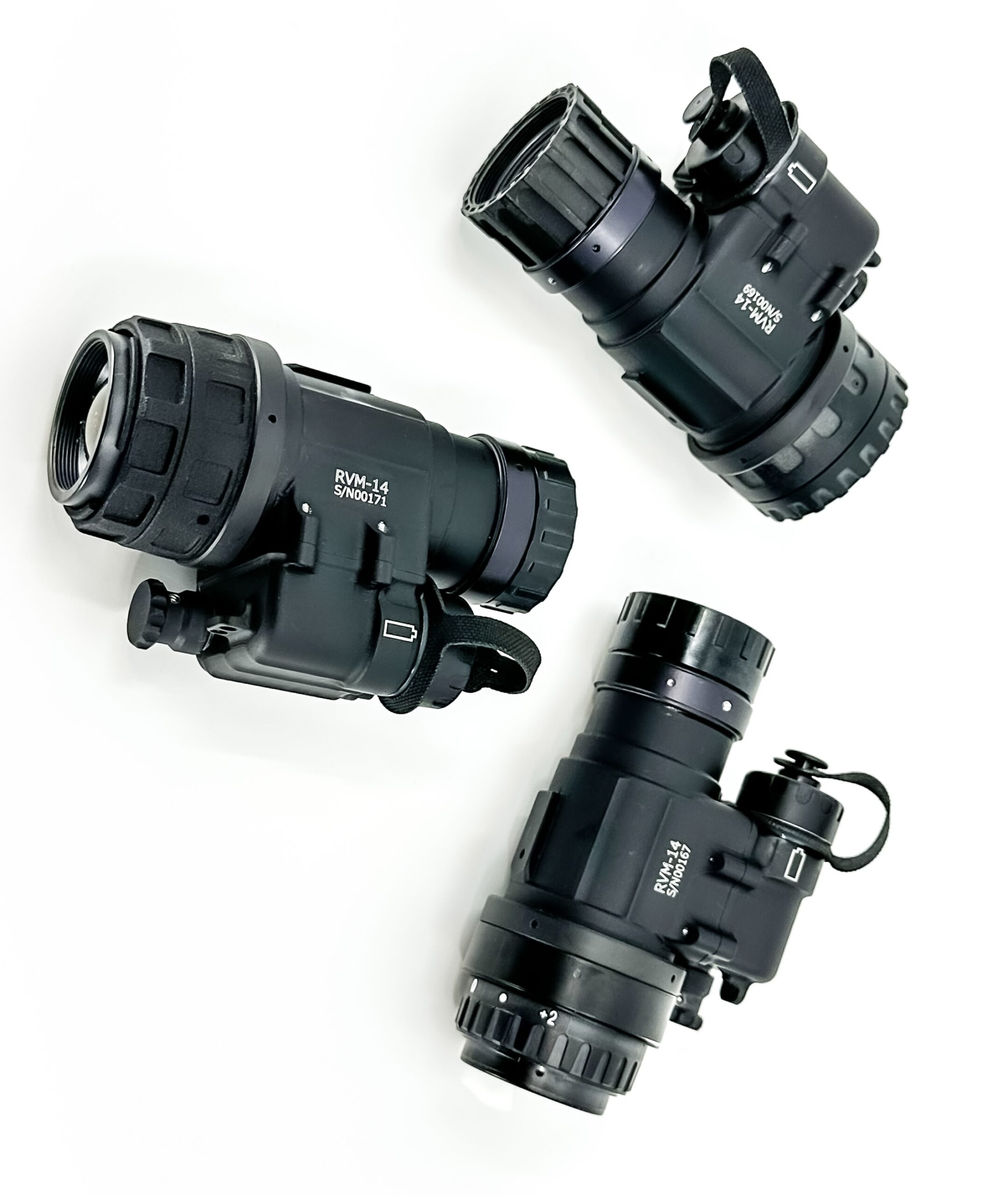

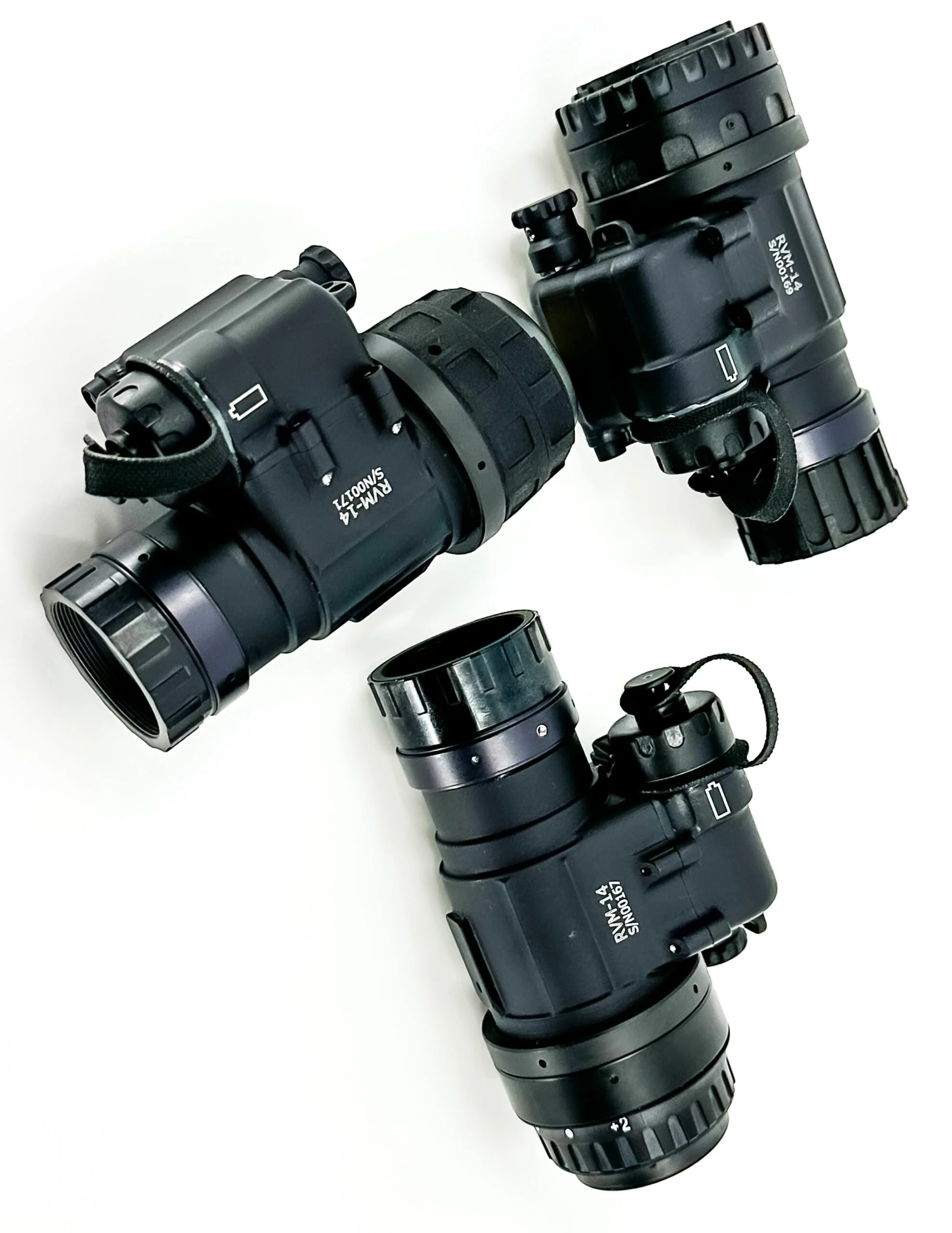

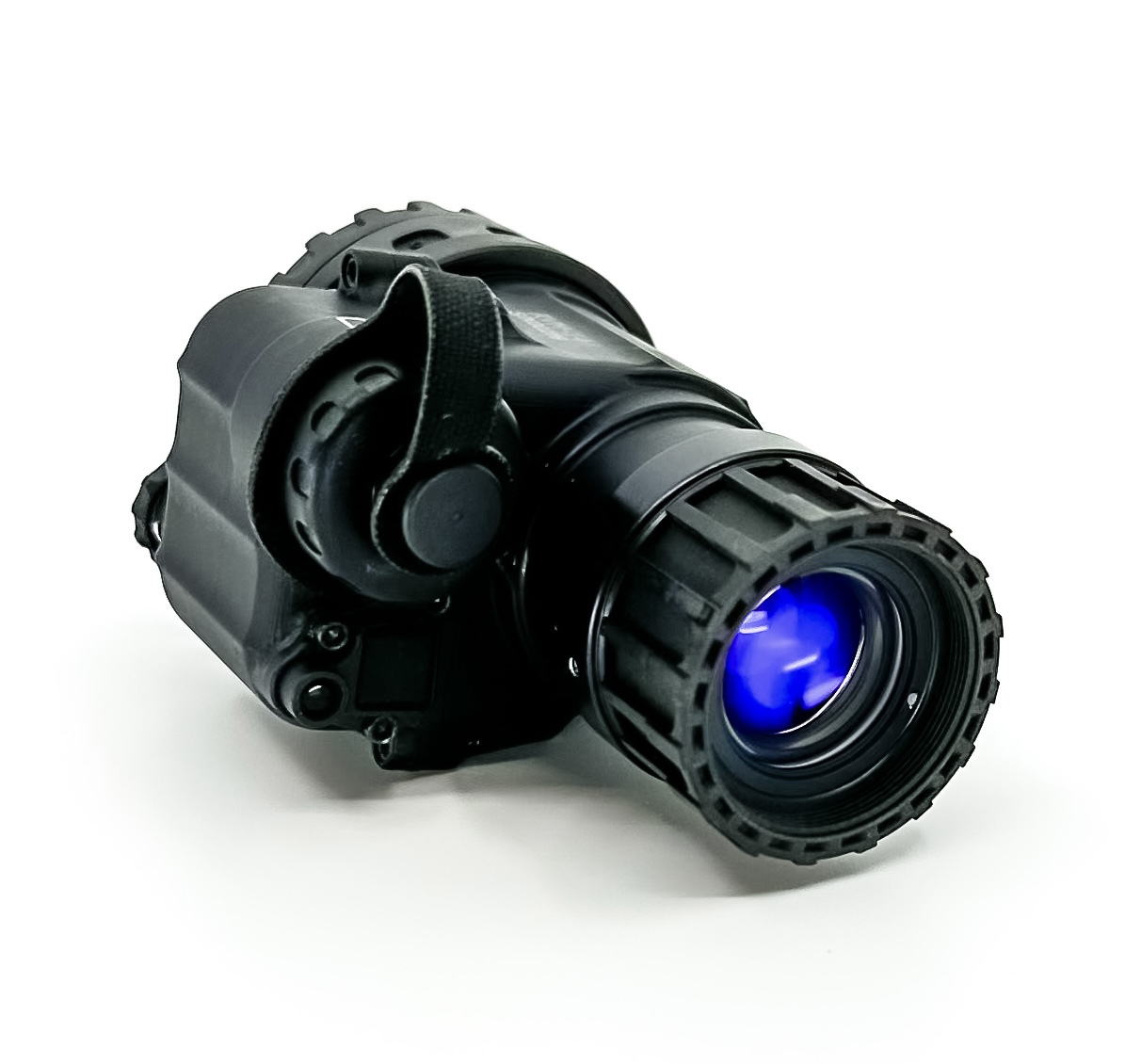

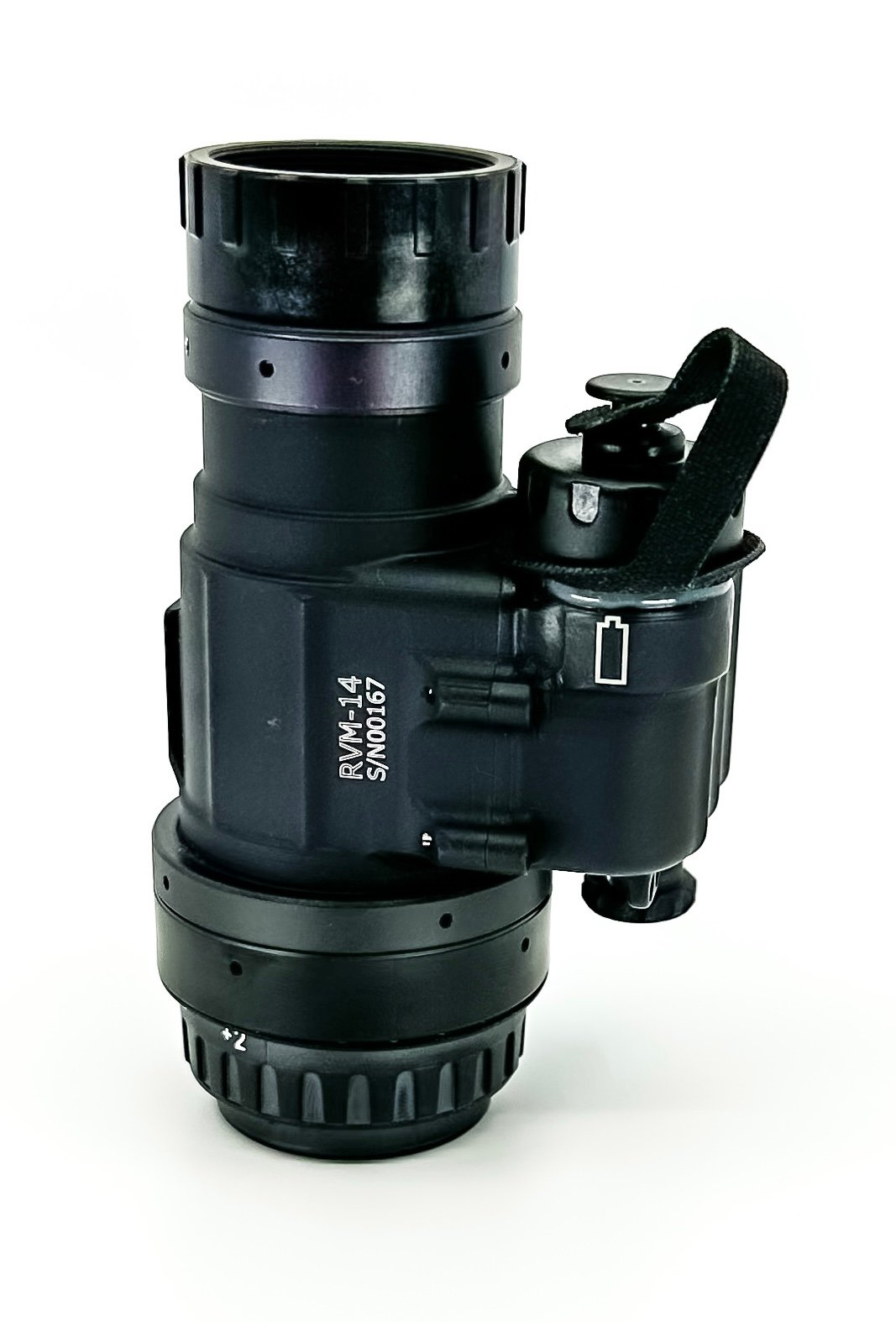

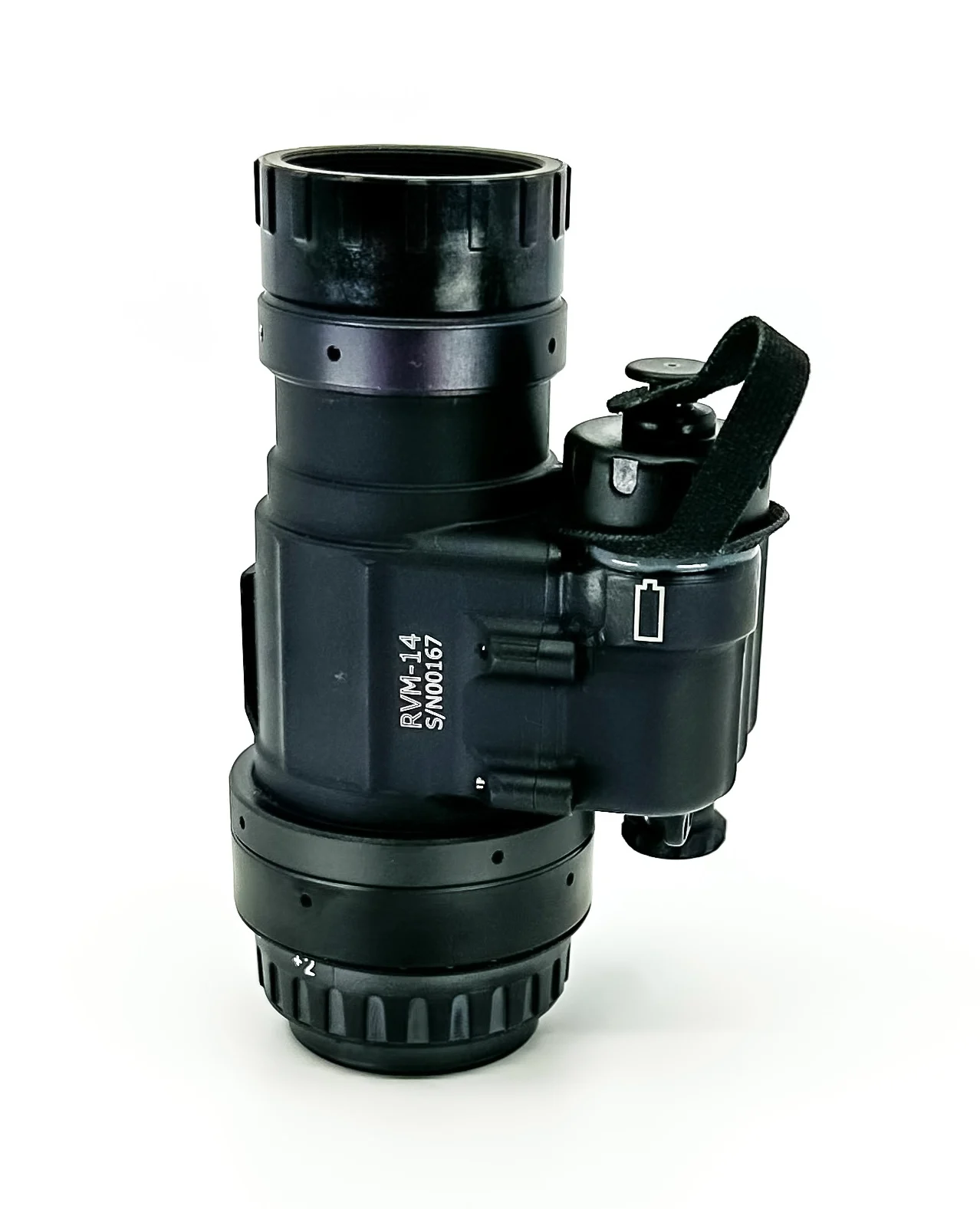

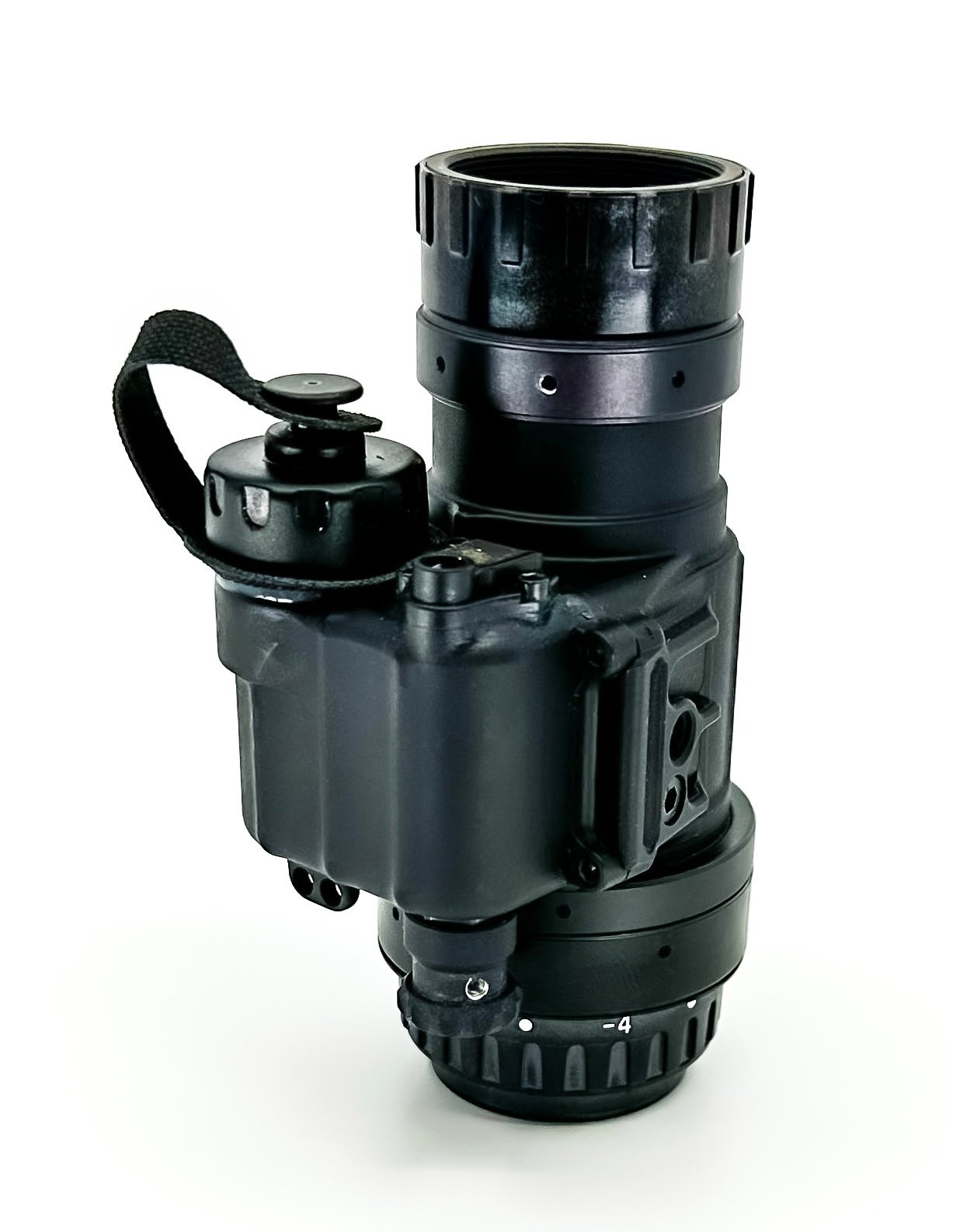

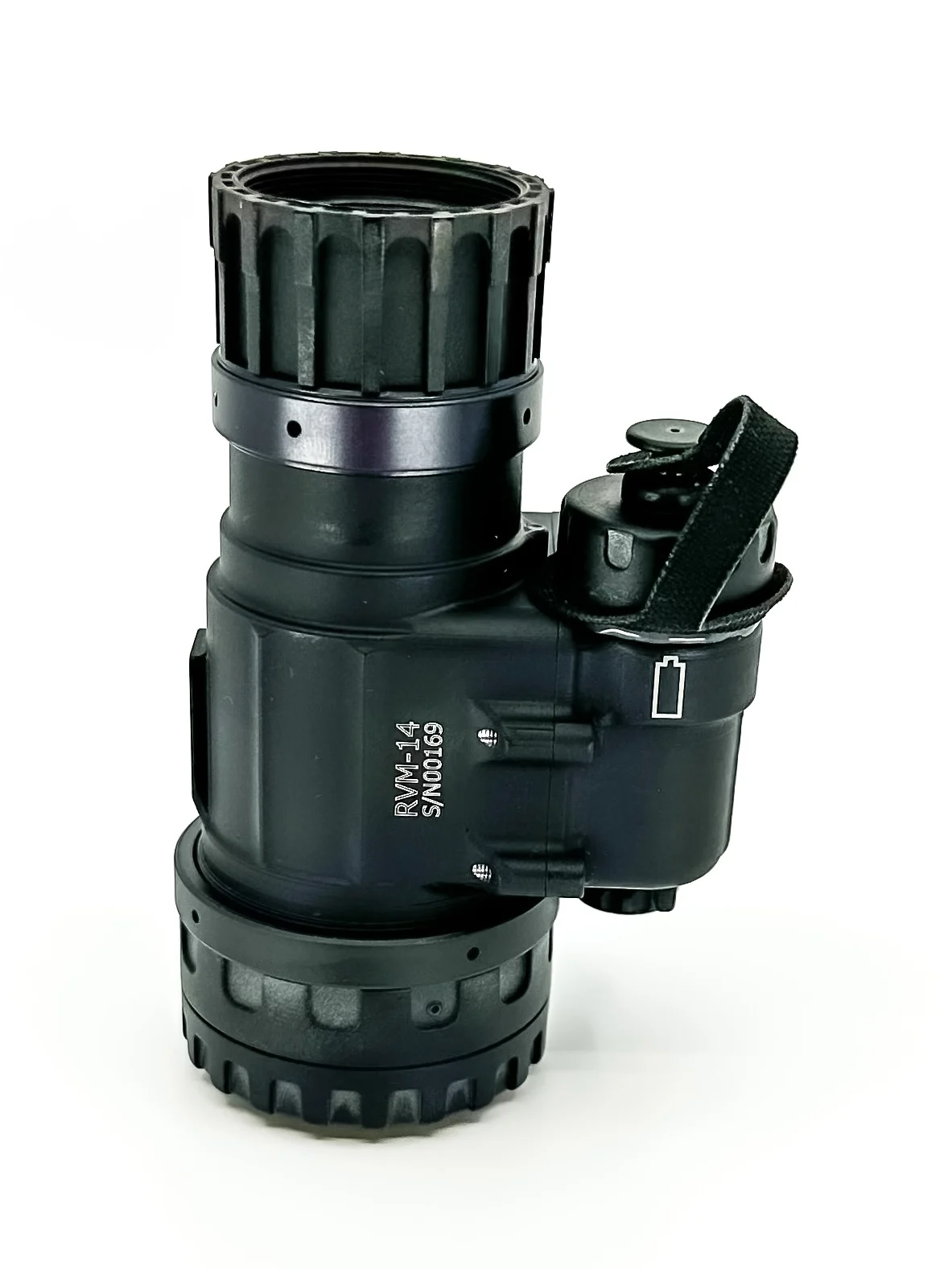

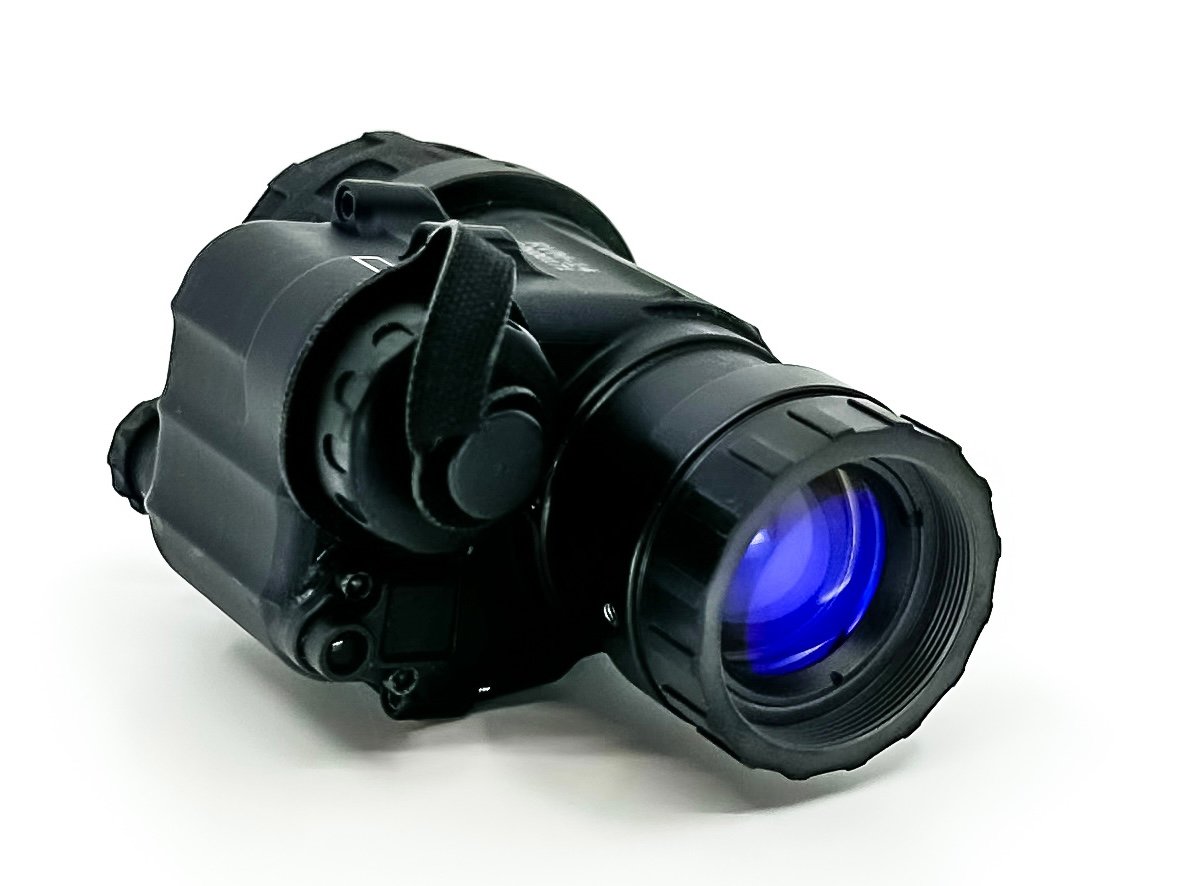

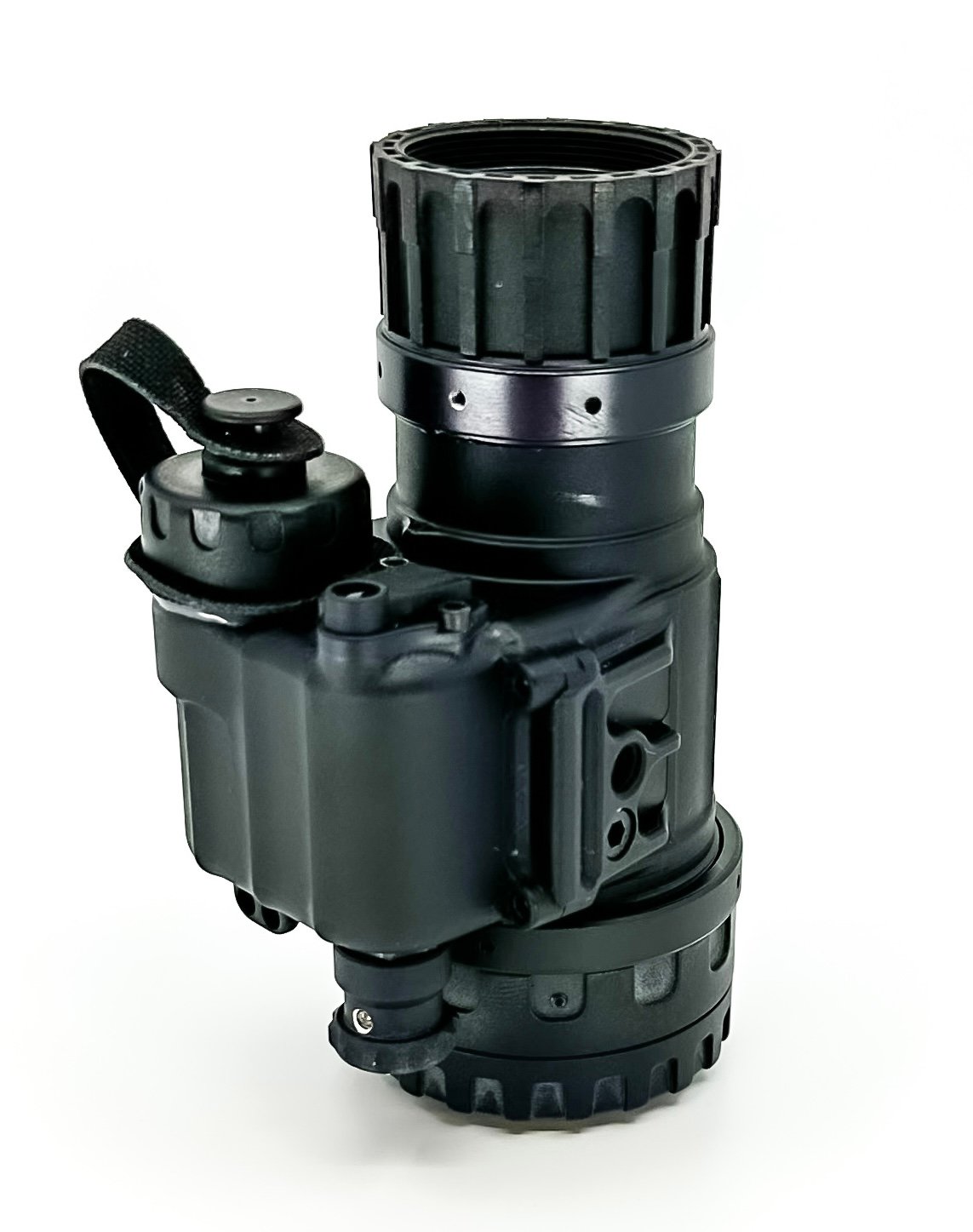

The RVM-14 is a ruggedized monocular housing developed by AB Night Vision. AB Night Vision is known for making the most rugged night vision housing on the market. Constructed of 7075 aluminum, the RVM-14 can take whatever you throw its way. It accepts traditional j-arms and also a proprietary arm and bridge design.

We offer the RVN-14 in with L3, Elbit and Photonis tubes. Actual specs and photos of each in stock unit are in the drop down menus (please note: color shade of blue/green is due to photo lighting, all tubes will actually be the same light blue in color).

Handpicked Option – Select this if you want Custom Night Vision to select intensifier tubes for you instead of selecting a set from our inventory. We will contact you (typically within 24-48 hours of placing your order) with pictures and specs of tubes we select to ask for your approval. If you have preferences on certain specs (ie: SNR, EBI etc…) please include those in your order notes and we will do our best to meet your goal. After customer tube approval the night vision unit will be ready to ship within 1 to 3 business days.

We offer three choices of Optics

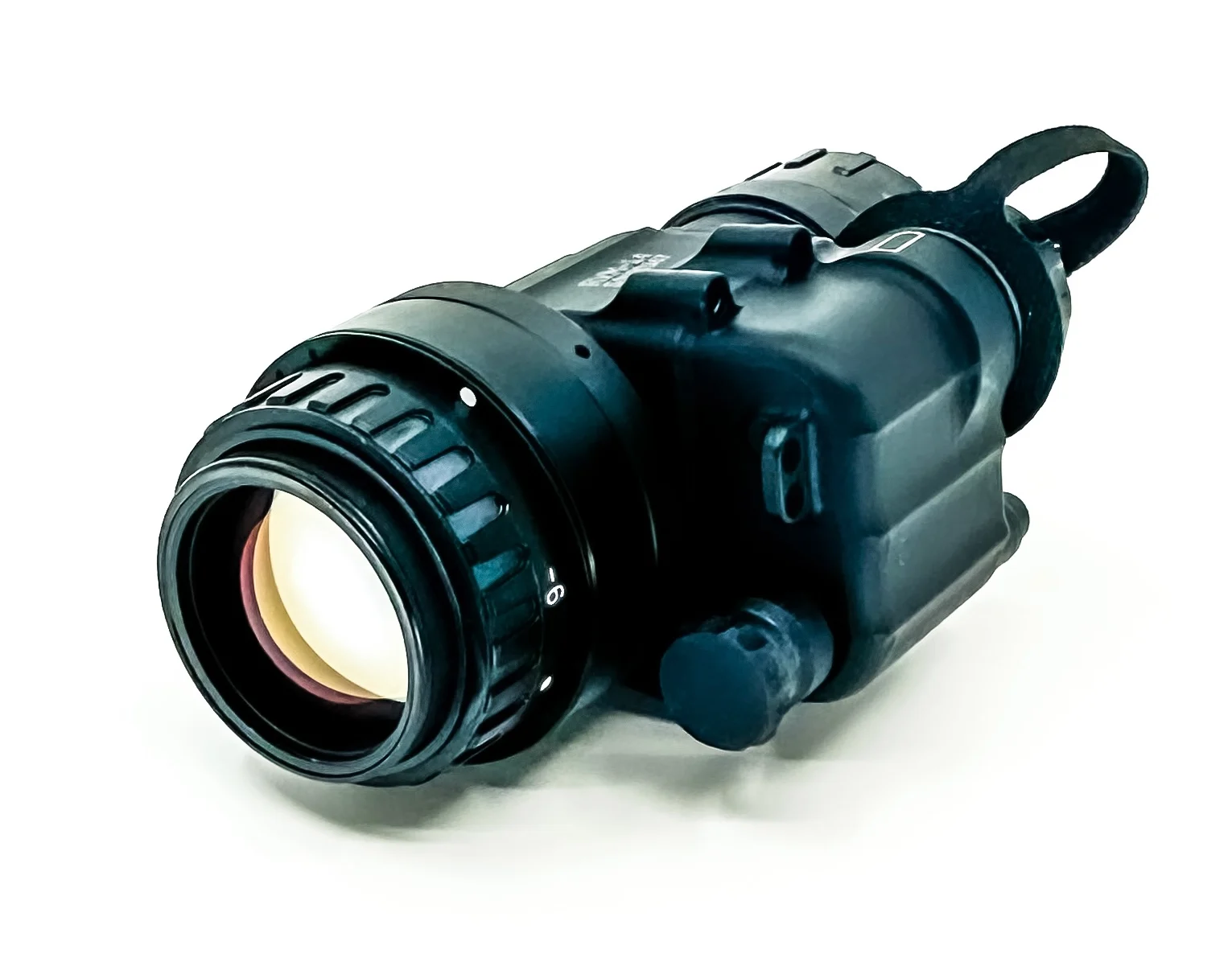

Standard Mil Spec Optics

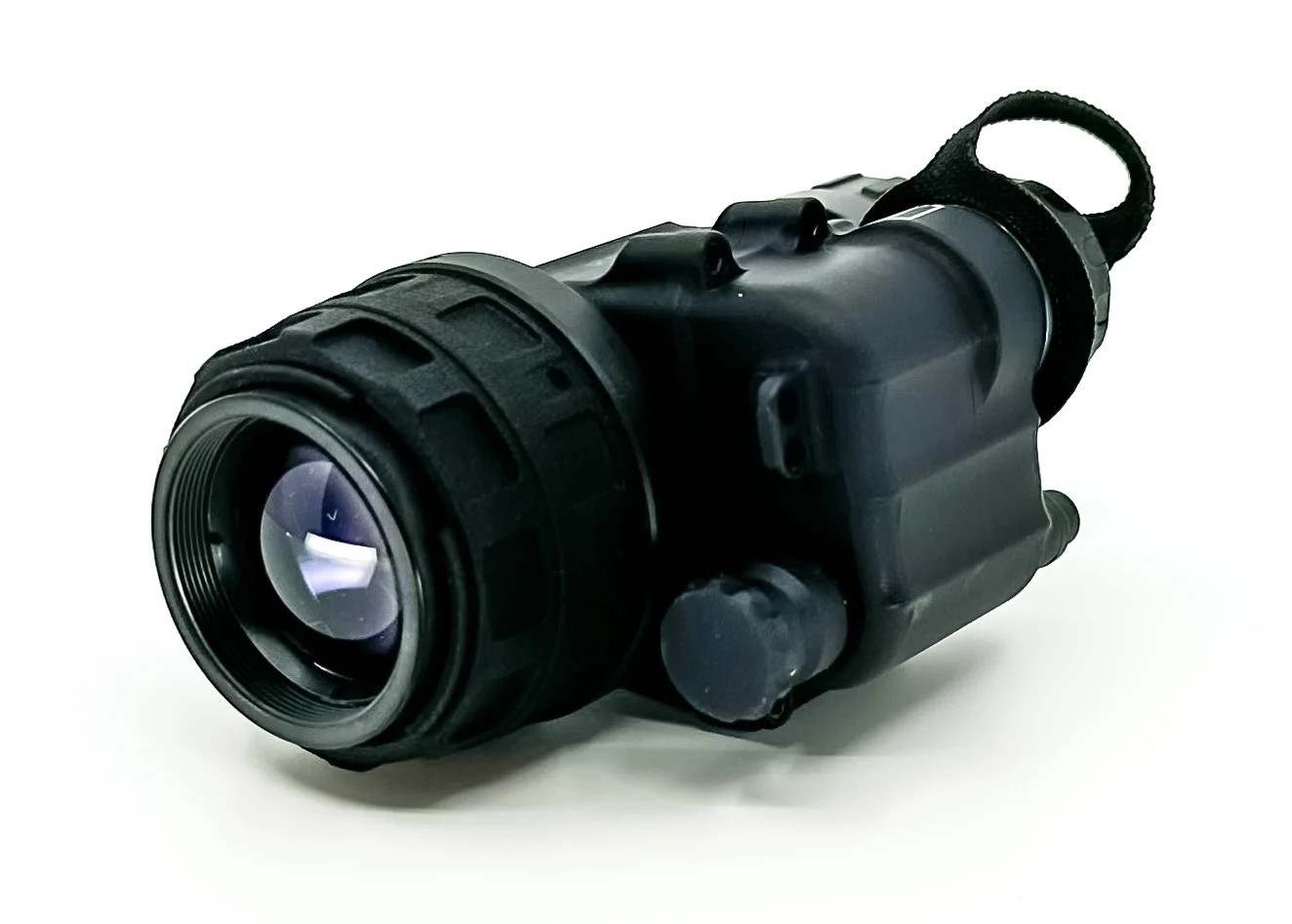

Rochester Precision Optics (RPO) 3.0 Ultralight

Photonis Defense Boomslang 50 Degree FOV

Features of the RVM-14 include:

Manual gain control

On-board illuminator

Adjustable diopter

Dedicated tether points

CR123 power source

Approximately 75 hours run time

The RVM-14 can also be bridged with another RVM-14 using the purpose built AB Night Vision RVM-14 dovetail bino mount bridge. This is a versatile method of achieving a binocular night vision device which can be quickly set up and taken down.

TECHNICAL SPECIFICATIONS

Field of View 40°

Magnification 1x

Diopter Adjustment -6 to +2 Diopters

Eye Relief 25mm

Submersible 66 feet

Objective Lens 27mm, f/1.2

Focus Range 9.8″ to infinity

Power Source 1 CR123 Battery

Operation Time 75 Hours at Room Temperature

Weight 300g with std Mil-spec optics and battery
