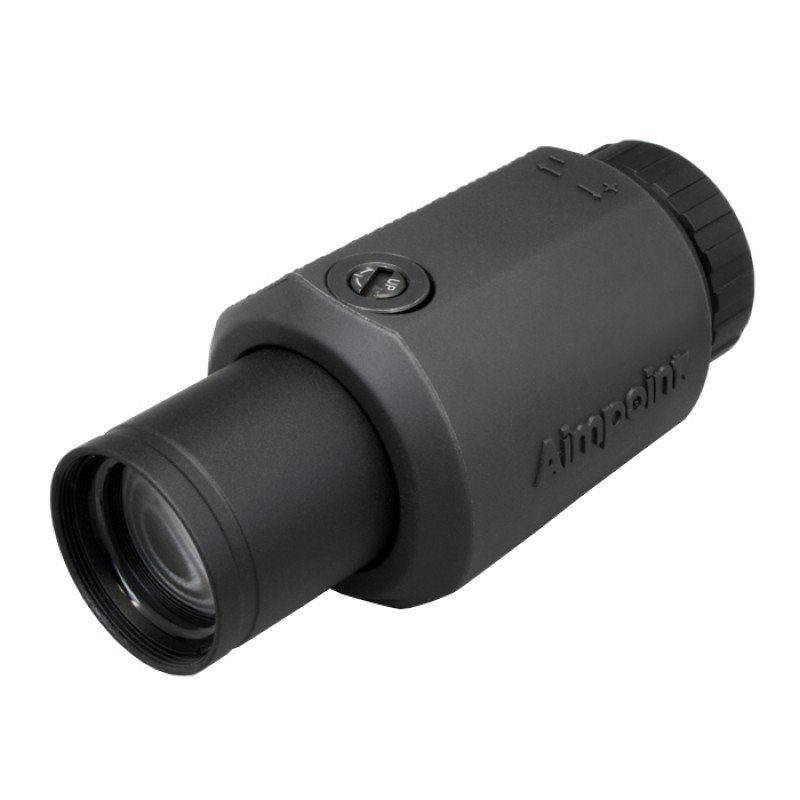

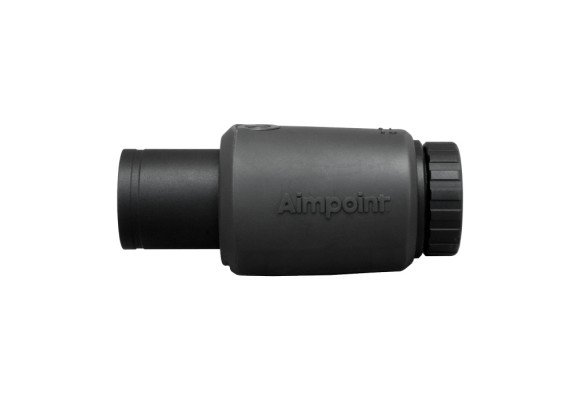

Aimpoint 3X-C Magnifier (No Mount) 200273

The Aimpoint® 3X-C Magnifier was developed for the civilian end user, and can be used in conjunction with all Aimpoint® sights for long-range aiming or observation. A variable -2 to +2 dioptric setting allows this magnifier to be adapted to the individual shooter’s eye.

The 3X-C can also be used as a 3X handheld monocular. Aimpoint magnifiers utilize the red dot in Aimpoint sights as the aiming reticle, eliminating the need for re-zeroing when shifting between non-magnified and magnified aiming.

The Aimpoint 3X-C Magnifier (no mount) is encased in a shock absorbing protective rubber cover that also creates an ideal ergonomic grip. Internal optical adjustments make aligning the magnifier and sight quick and easy.

Optical Specifications

Optical magnification: 3x

NVD compatible: Yes

Field of view FoV: 6°

Exit pupil: 6.5 mm

Eye relief: 56 mm

Dioptric adjustment: ± 2.0 D

Physical Specifications

Length sight only: 103 mm 4”

Width: 45 mm 1 3/4″

Height sight only: 45 mm 1 3/4″

Weight sight only incl battery: 220 grams 7.8 ounces including rubber cover

Environmental Specifications

Temperature range operation: Operation at a temperature of -35 °C to +55 °C

Temperature range storage: Storage at a temperature of -35 °C to +55 °C

Temperature shock: From -25°C to +40 °C

Humidity: +40 °C, RH: 95 %

Submersible: Immersion to a depth of 0.5 m
