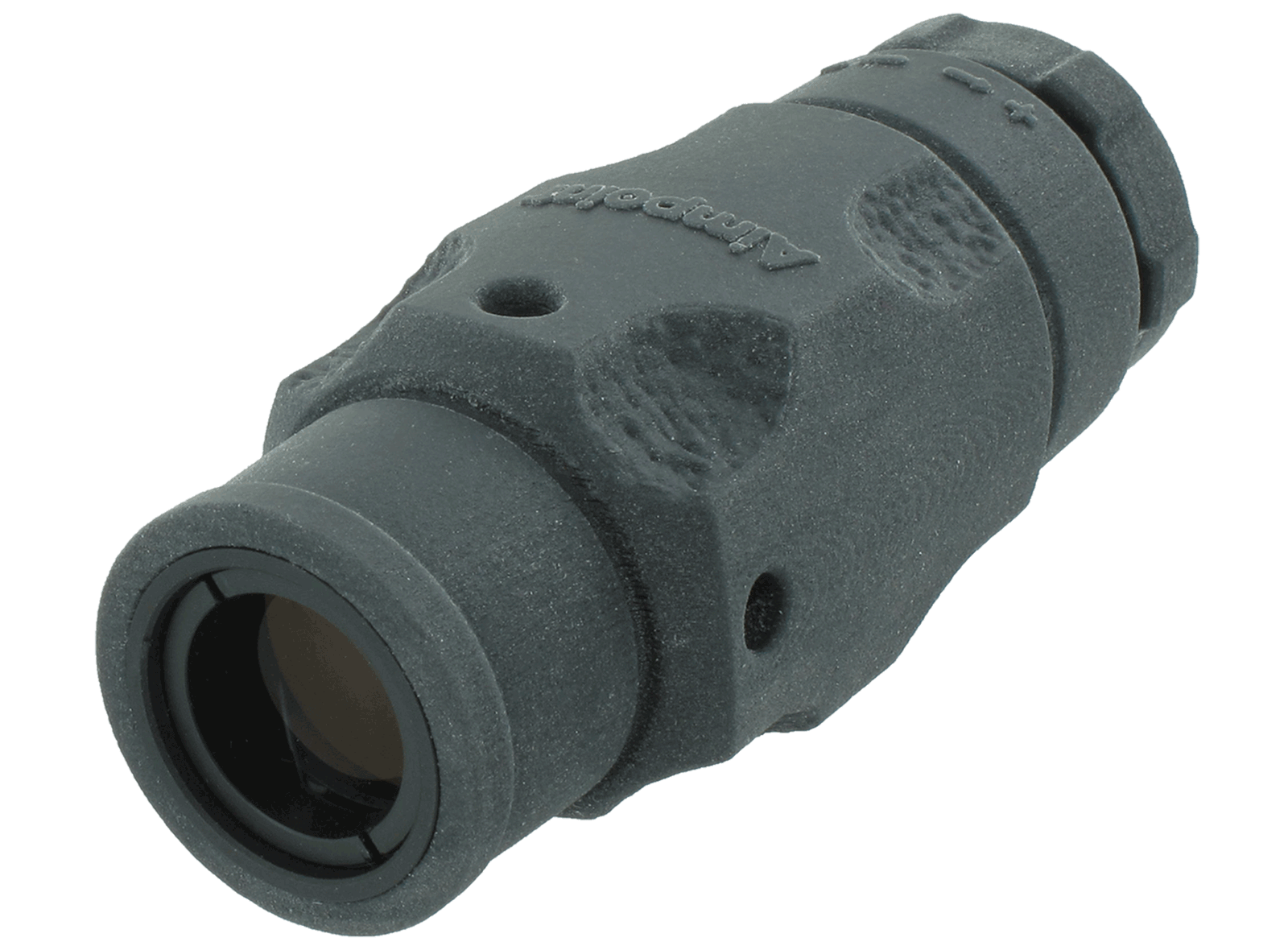

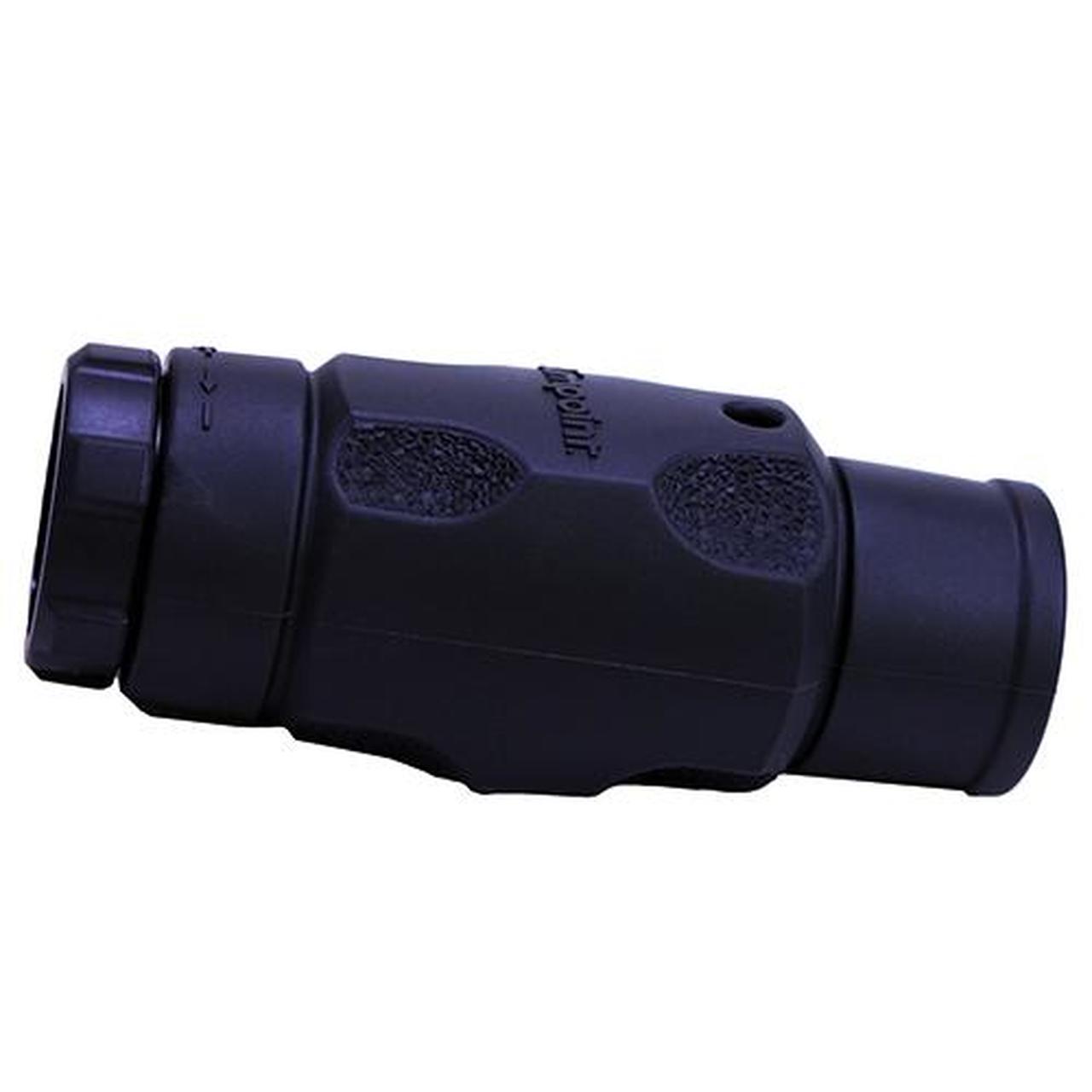

Aimpoint 3XMag-1 Magnifier (No Mount) 200271

The Aimpoint® 3XMag-1 can be used in conjunction with all Aimpoint® sights for long-range aiming or observation. A variable (-3 to +3) dioptric setting allows this magnifier to be adapted to the individual operator’s eye.

The 3XMag-1 can also be used as a handheld 3X monocular. Aimpoint magnifiers utilize the red dot in Aimpoint sights as the aiming reticle, eliminating the need for re-zeroing when shifting between non-magnified and magnified aiming.

The 3XMag-1 is encased in a shock-absorbing protective rubber cover that also creates an ideal ergonomic grip. Internal optical adjustments make aligning the magnifier and sight quick and easy.

Optical specifications

Optical magnification: 3x

NVD compatible: Yes

Field of view (FoV): 7°

Exit pupil: 6.5 mm (0.3 in)

Eye relief: 70 mm (2.8 in)

Transmission: 75 % (photopic, integral transmission)

Dioptric adjustment: ± 3.0 D

Physical specifications

Length sight only: 117 mm (4.6 in)

Width sight only: 46 mm (1.8 in)

Height sight only: 43 mm (1.7 in)

Weight sight only (incl battery): 230 grams (8.1 oz) including rubber cover

Housing material: Hard-anodized aluminum

Housing finish and color: Matte dark grey to black

Surface treatment: Hard anodized, matte, with protective rubber armor cover

Environmental specifications

Temperature range operation: -45°C to +71°C (-49°F to +160°F)

Temperature range storage: -45°C to +71°C (-49°F to +160°F)

Temperature shock: Operable after a temperature shock between -40⁰C and +55⁰C (-40°F and +131°F)

Humidity: Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic

Submersible: To a depth of 25 m (80 ft.)

Shock: Withstands shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction).

Vibration: Withstands Vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction.

Other information for Environmental Specifications: Salt fog: 5 % NaCl solution at a temperature of 35 °C
