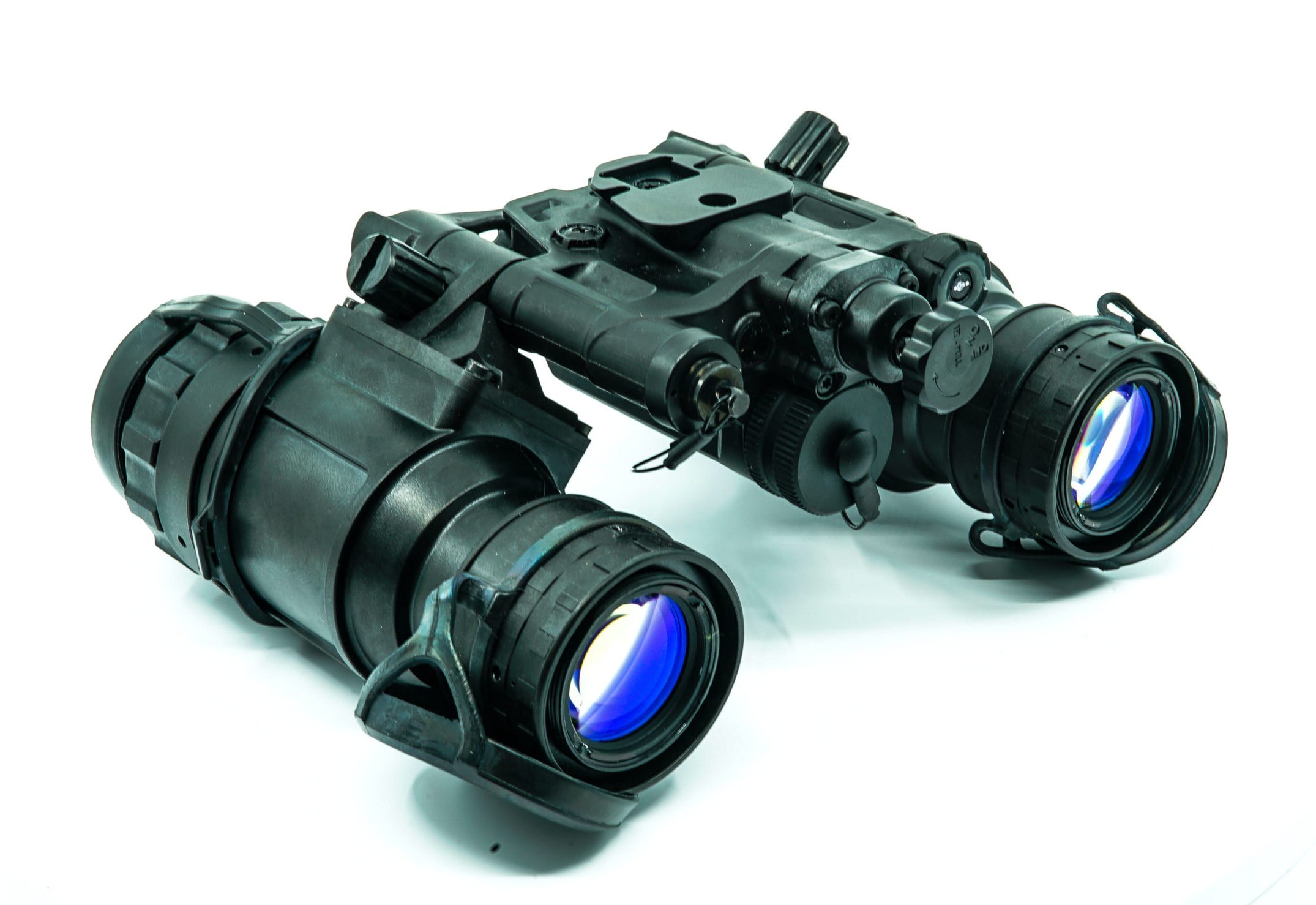

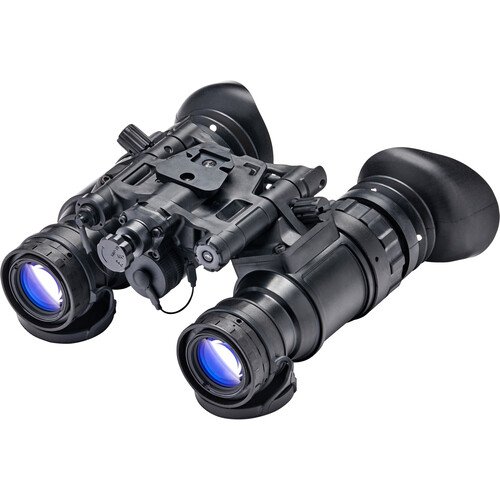

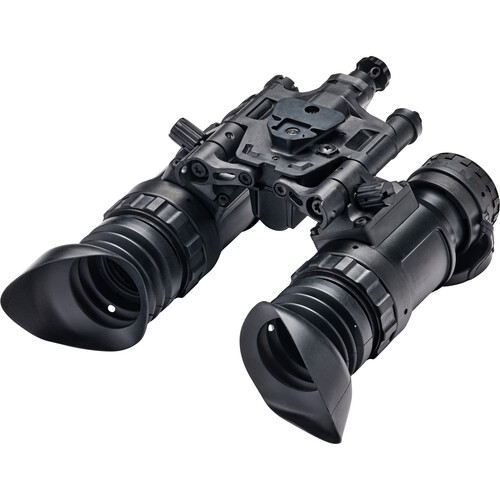

EOTech BinoNV Night Vision Goggle with Wilcox G24 Mount

The EOTECH BinoNV is a cutting edge, compact, lightweight night vision goggle built to full MIL-SPEC standards. Binocular systems offer better depth perception than single tube systems making them preferred for navigating on foot or by vehicle and interacting with the environment. The built-in Diopter adjustments makes this model an ideal choice for special operations forces and SWAT applications. This goggle is fully articulable where the user can flip up each monocular easily and independently. This goggle features a self-contained single AA battery power and can also be operated with an external battery pack (optional accessory) for increased operational run time.

Included in the box:

EOTECH BinoNV

Quick Start Guide

Technical Manual

Eyecup

Sacrificial Lens

Demist Shield

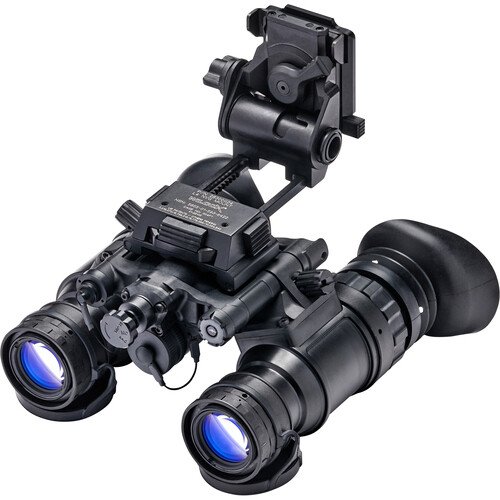

Wilcox G24 Helmet Mount

Lens Cleaning Kit

Protective Case

Size:

4.7″ x 4.4″ x 3.0″ (120 x 112 x 75 mm)

Weight

19.4 oz / 1.2 lbs (550g) including battery

Power Source:

1 AA battery – Supports lithium, alkaline or rechargable

Battery Life

Lithium: > 25 hours / Alkaline: > 15 hours

FOV

40°

Min Focus Distance

9.8 in (25cm)

Diopter Adjustments

+2 to -6

Water Resistance

66 ft (20m) for 1 hour; MIL-STD-810G

Tubes

ESA Gen III White Phosphor

FOM

2376 minimum FOM

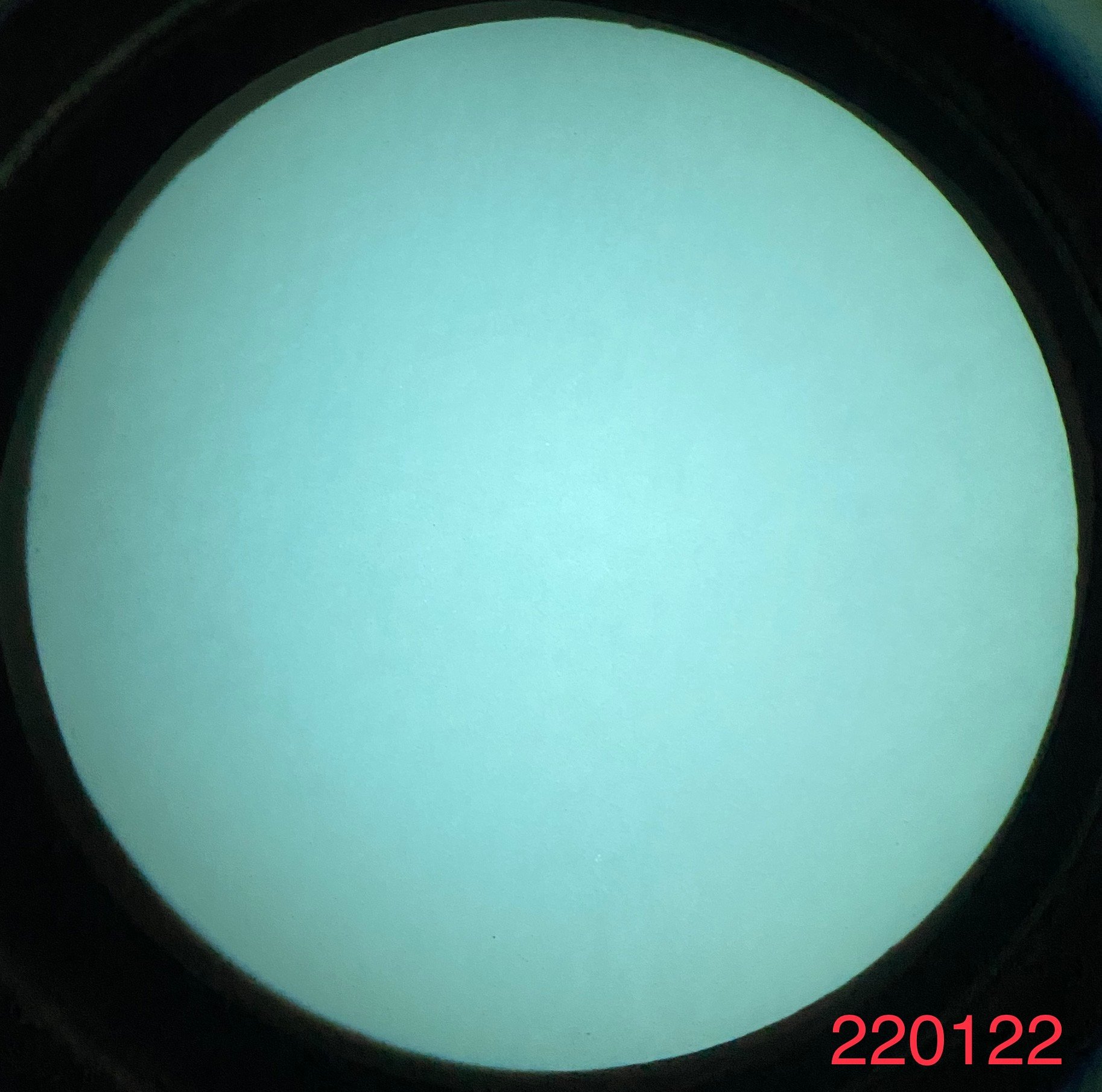

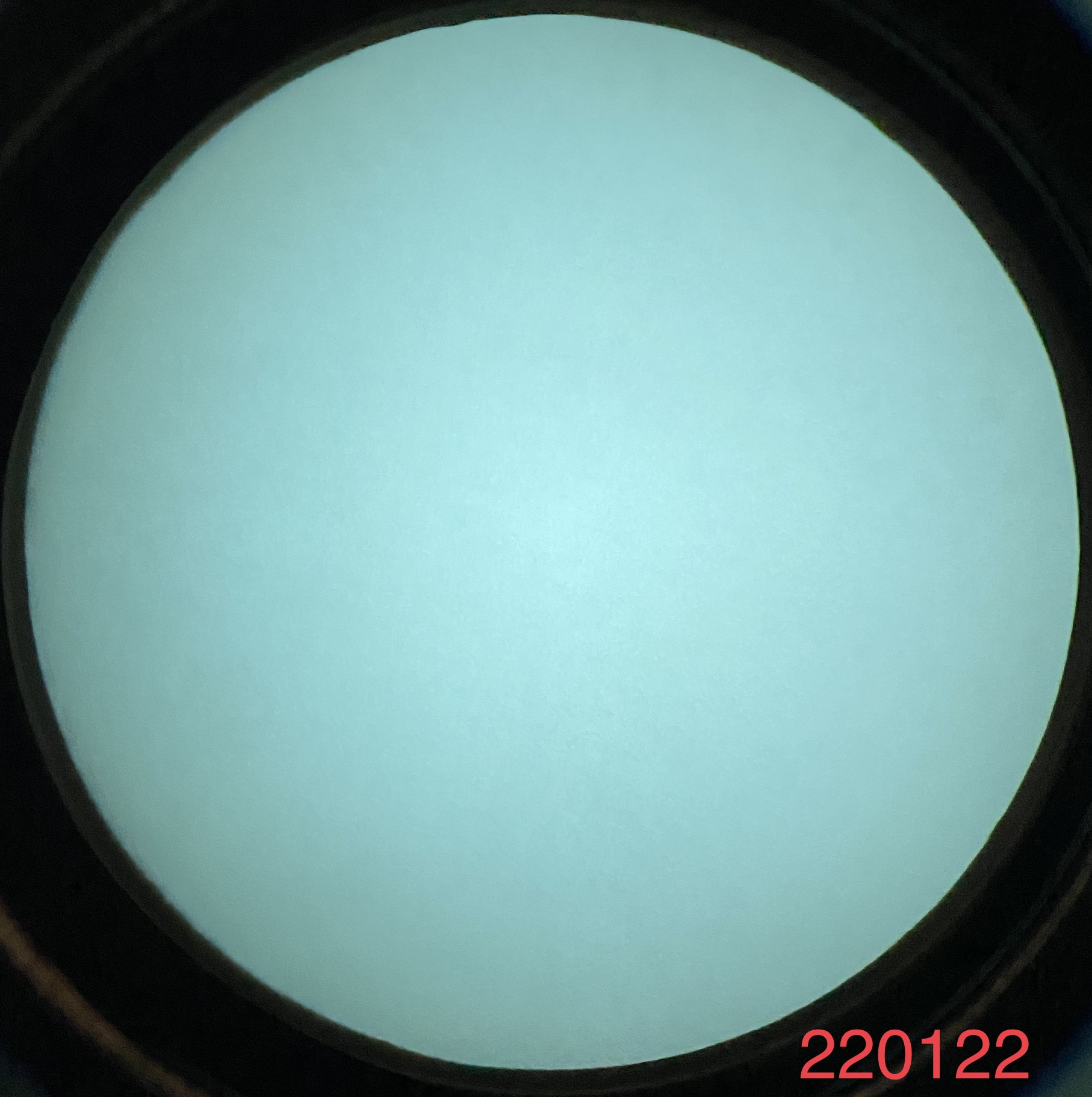

Unit 220122 – Elbit M24MH – 76 Resolution, 34.1 SNR, 2562 FOM, 1.74 EBI, 0.81 Halo, 68515 gain, 2479 Photocathode / 76 Resolution, 37.9 SNR, 2880 FOM, 1.57 EBI, 0.81 Halo, 68240 gain, 2503 Photocathode

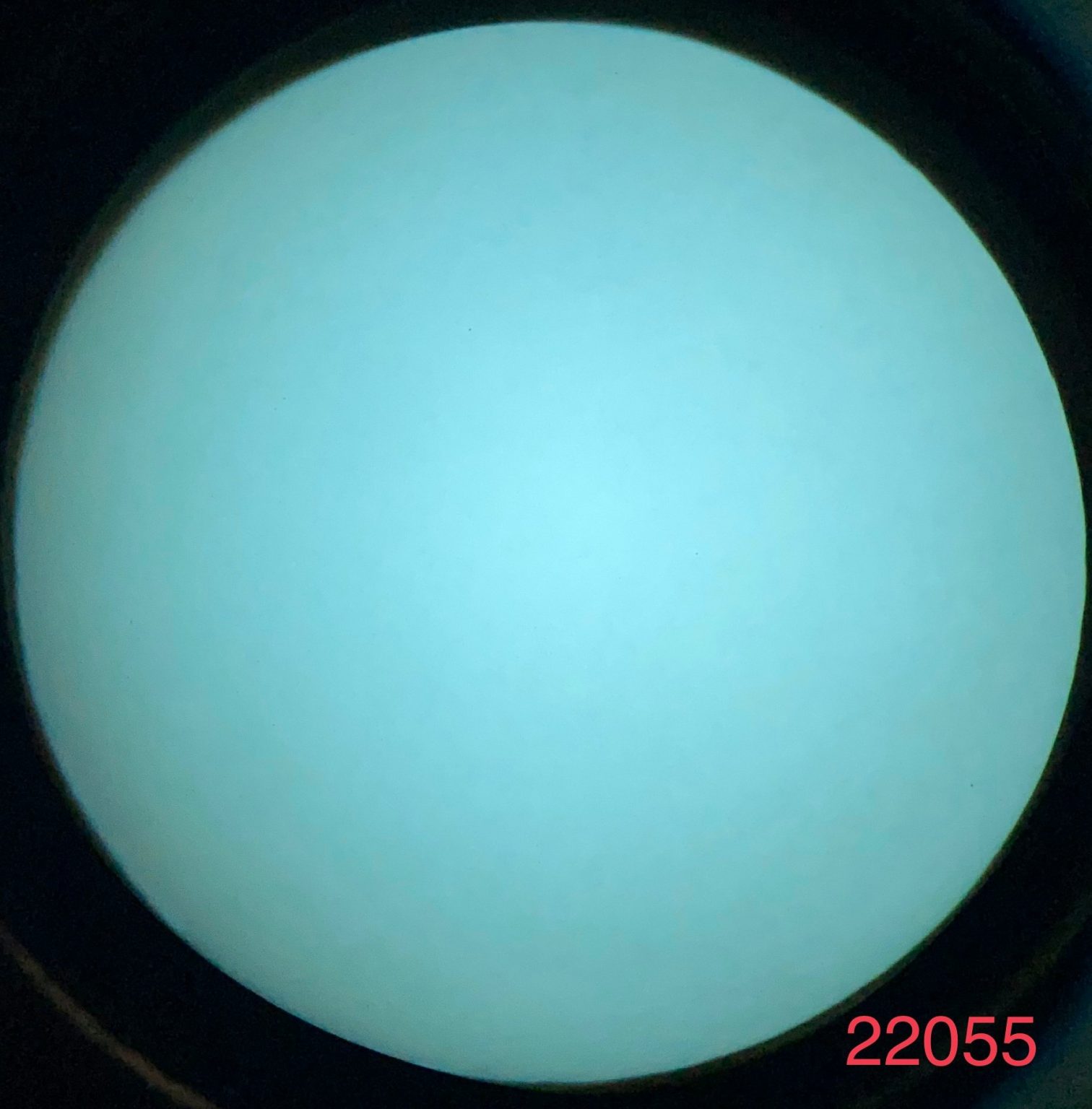

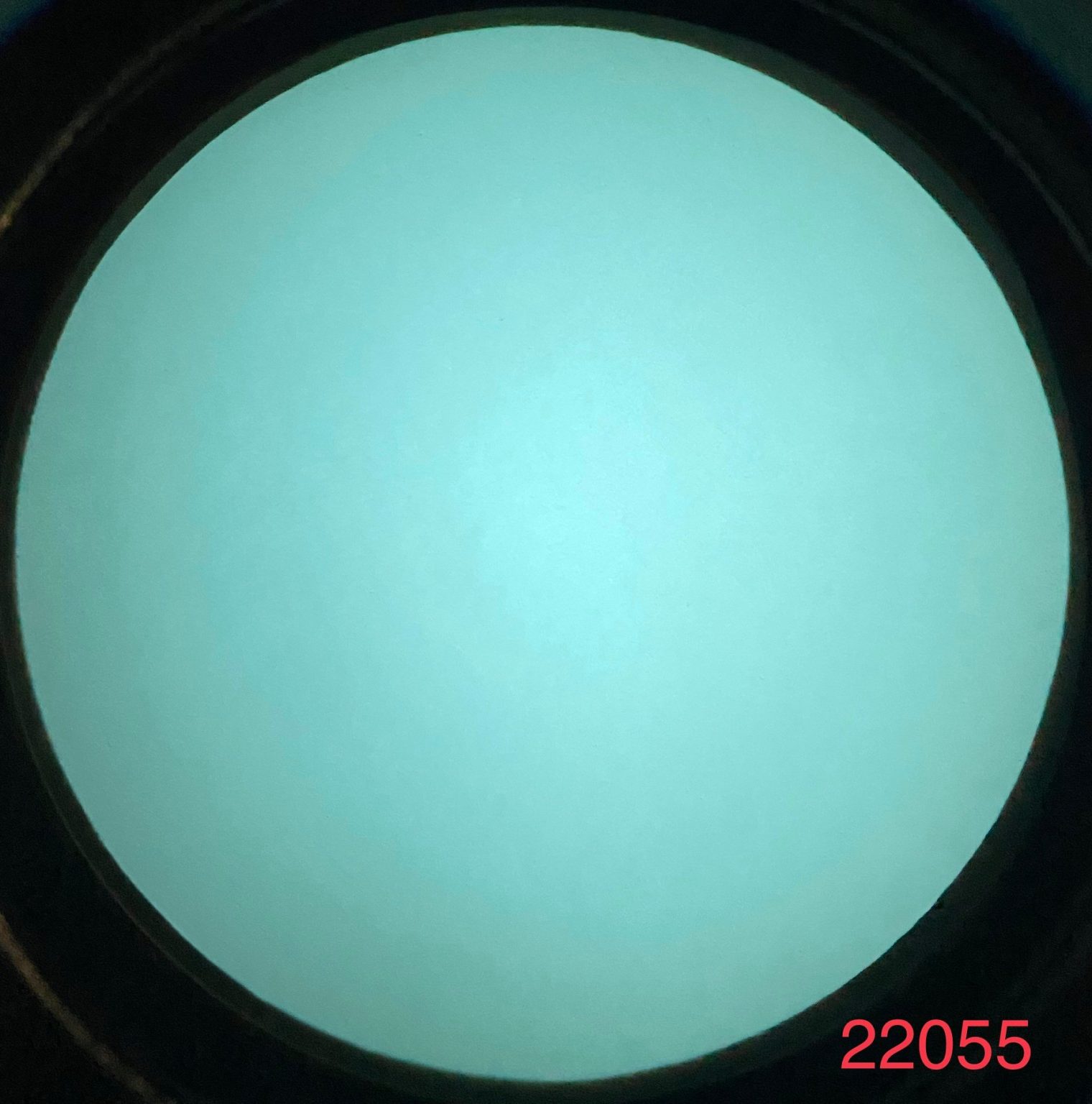

Unit 220055 – Elbit M24MH – 81 Resolution, 31.4 SNR, 2543 FOM, 0.77 EBI, 0.73 Halo, 68311 gain, 2322 Photocathode / 76 Resolution, 33.7 SNR, 2561 FOM, 1.51 EBI, 0.70 Halo, 67744 gain, 2418 Photocathode

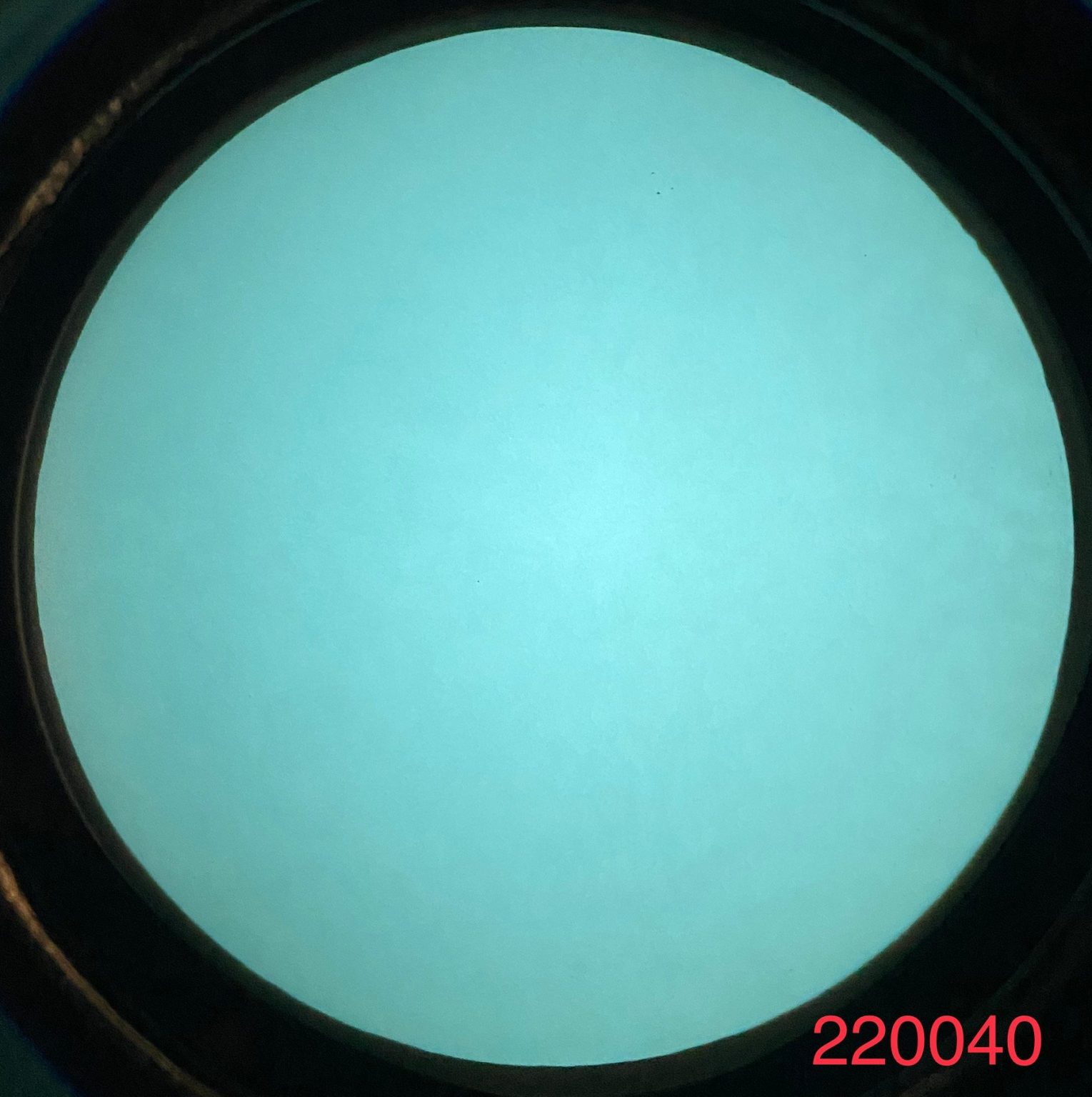

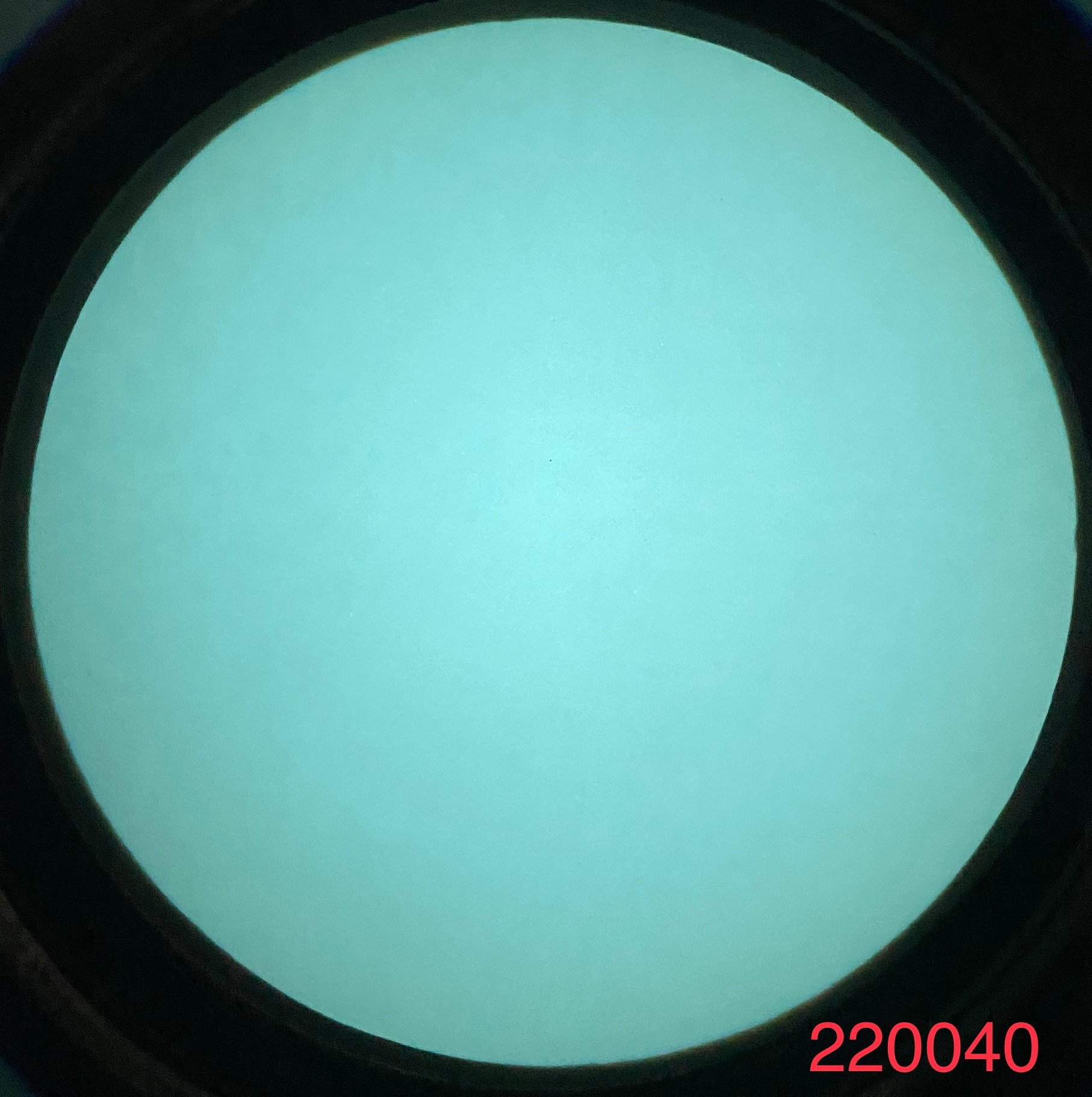

Unit 220040– Elbit M24MH – 76 Resolution, 31.9 SNR, 2424 FOM, 0.8 EBI, 0.79 Halo, 67367 gain, 2401 Photocathode / 81 Resolution, 30.6 SNR, 2479 FOM, 1.23 EBI, 0.77 Halo, 67048 gain, 2384 Photocathode
