Jerry-14 Gen2 Night Vision White Phosphor Monocular

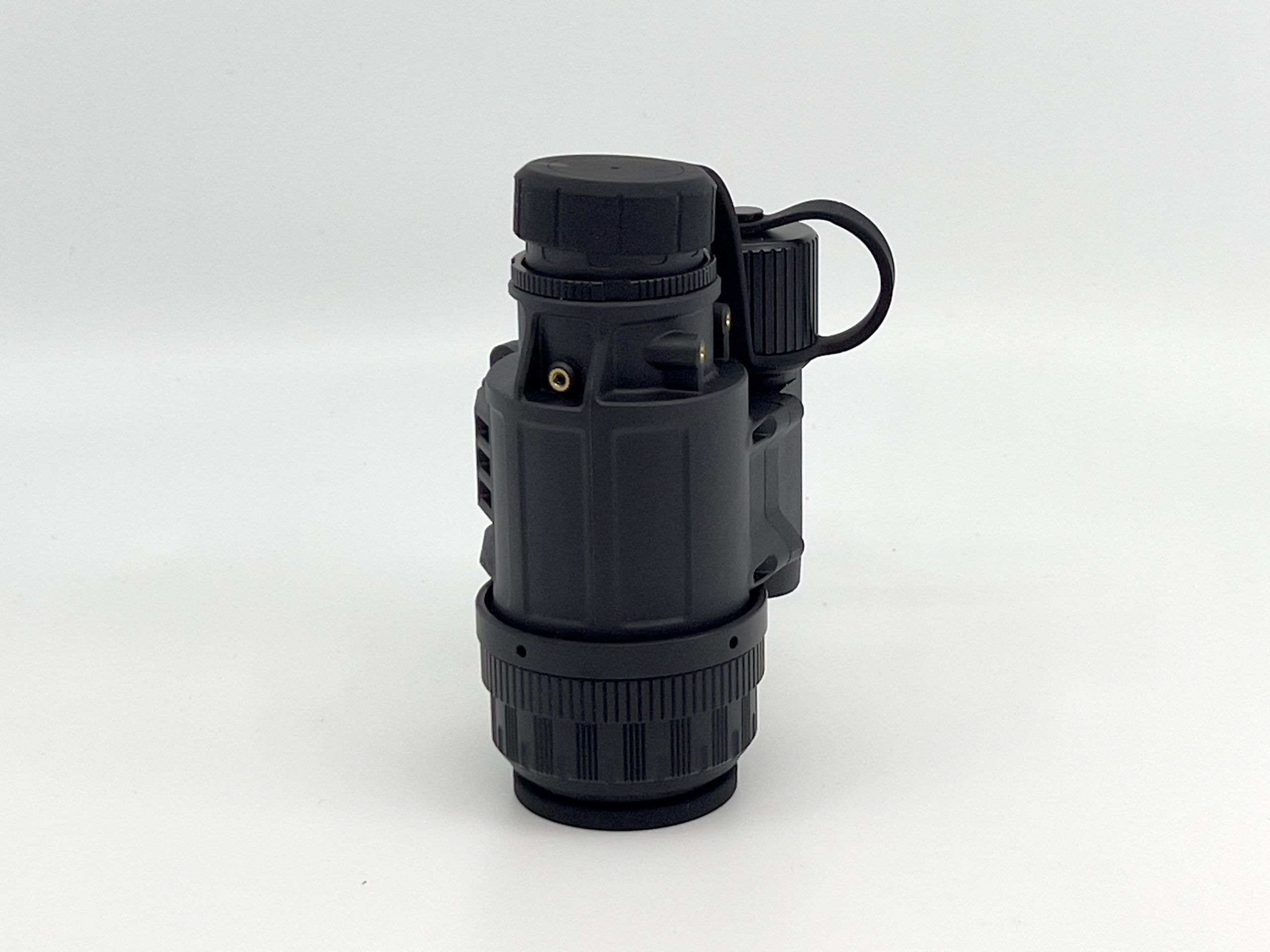

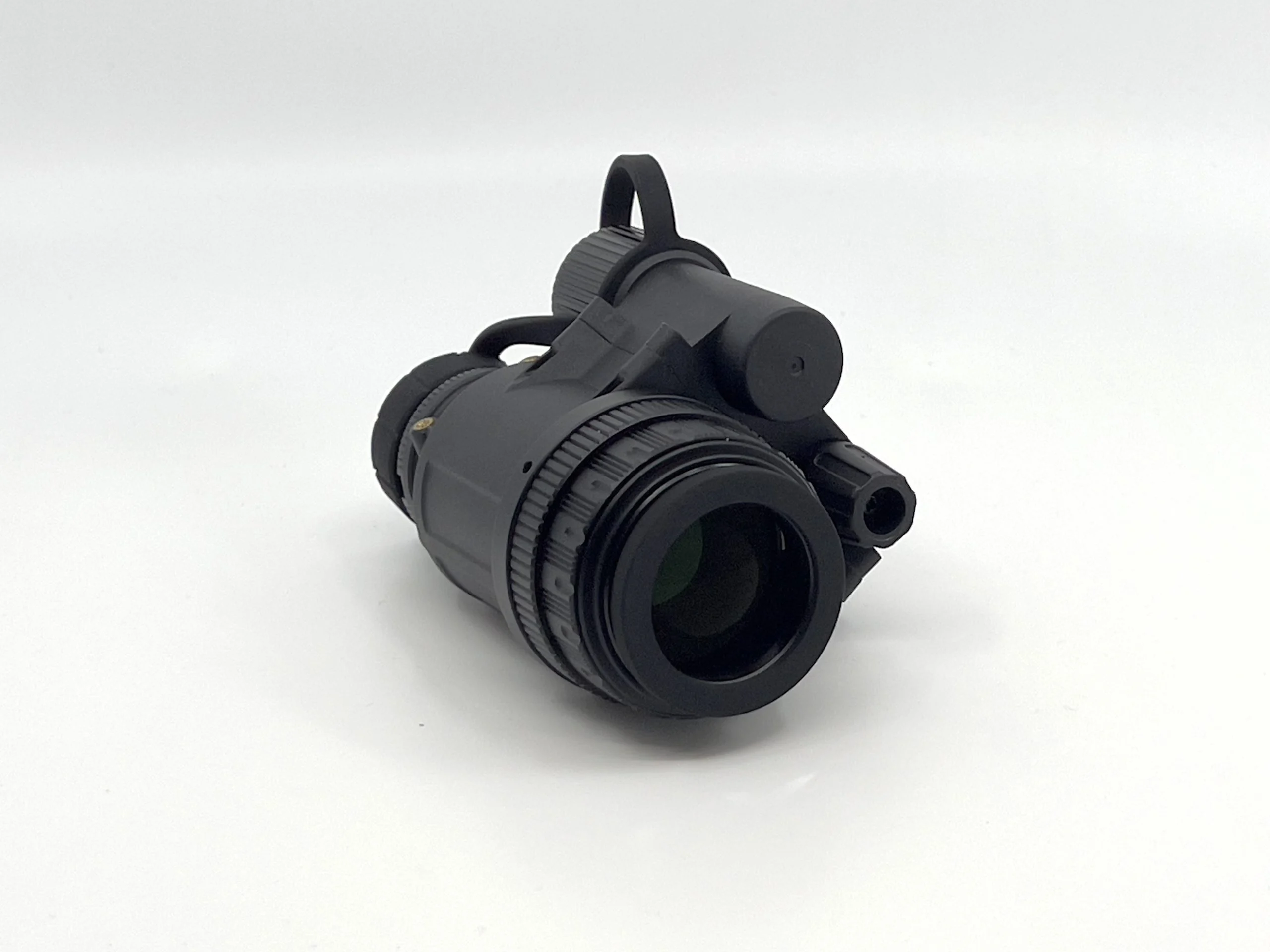

The InfiRay Jerry-14 Night Vision Monocular is an ultra-lightweight, full-featured white phosphor monocular that features an NNVT NVT4 1400-1600 FOM manual gain, non-autogated, white phosphor image intensifier. Weighing in at only 250g without battery, the Jerry-14 comes with all features you would expect from higher-priced, heavier offerings such as a robust reinforced polymer body, manual gain, low battery indicator, IR illuminator, manual focus, diopter adjustments, and more.

Minimum SNR: 22.0

Minimum Resolution: 64

Featuring similar controls and mounting footprint to milspec PVS-14s, the Jerry-14 comes with a full-metal, skeletonized, dovetail J-arm that comes ready to mount onto any standard NVG mount, such as the Wilcox G24.

Controls are simple – to turn on the device, rotate the main dial until it clicks, then simply continue turning to increase gain. To decrease gain, turn the knob counter-clockwise. To turn on the IR illuminator, double-tap the knob.

Scalability

Specifications

Material Polymer

Tube Type 18mm manual gain

Figure of Merit (FOM) SNR x LP/mm NNVT4 1400-1600FOM

Weight 250 grams

Power Supply AA onboard

Runtime 40+ hours

Lenses low profile lenses

Field of View 40º

Diopter Adjustable +2 to -6

Submersion and Dust Rating Up to 20 metres

Mount Style Dovetail with included J-arm

Onboard IR Illuminator Yes 5mW

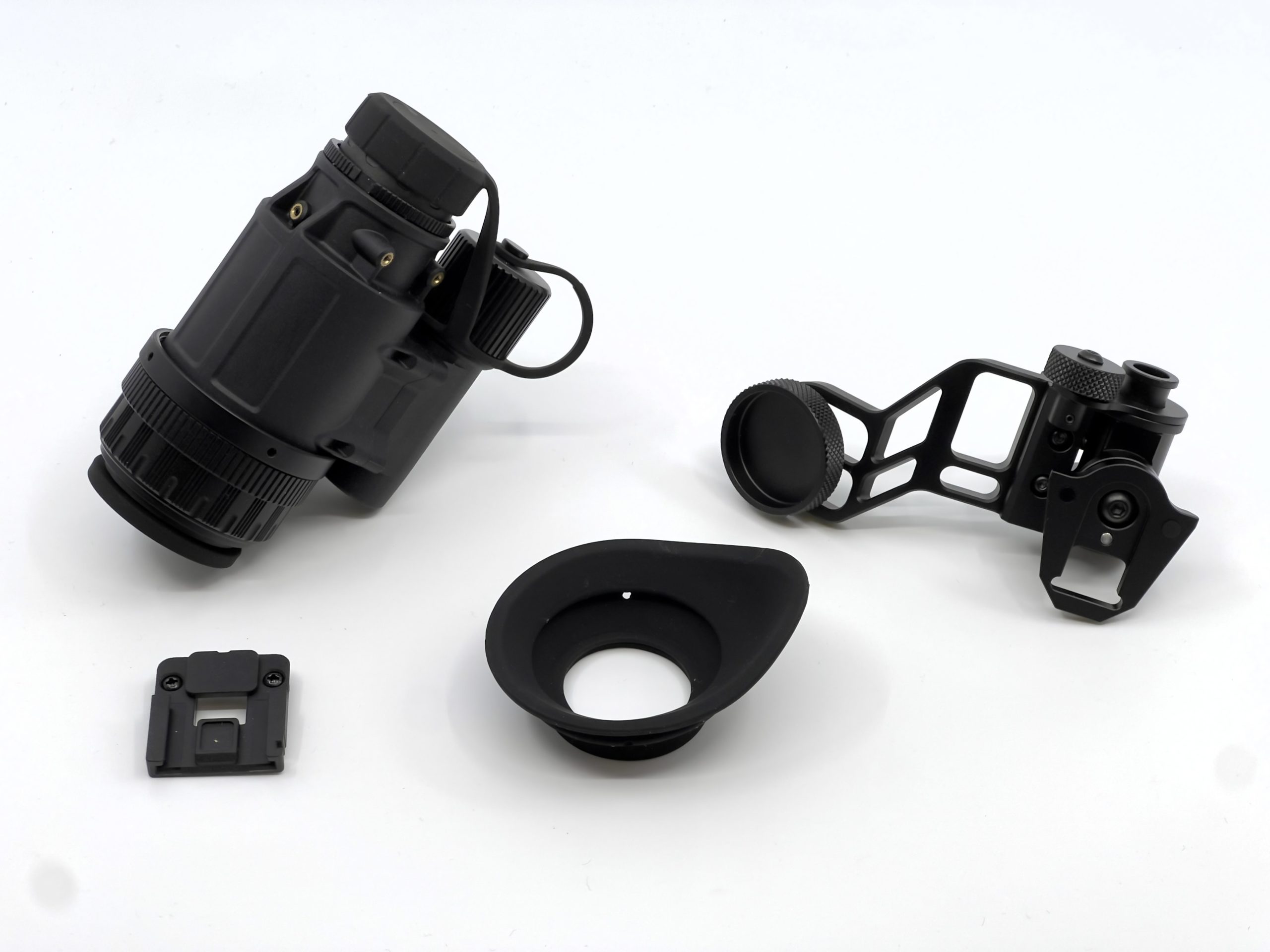

Package includes

NNVT white phosphor InfiRay Jerry-14 night vision monocular

Aluminum skeletonized dovetail J-arm

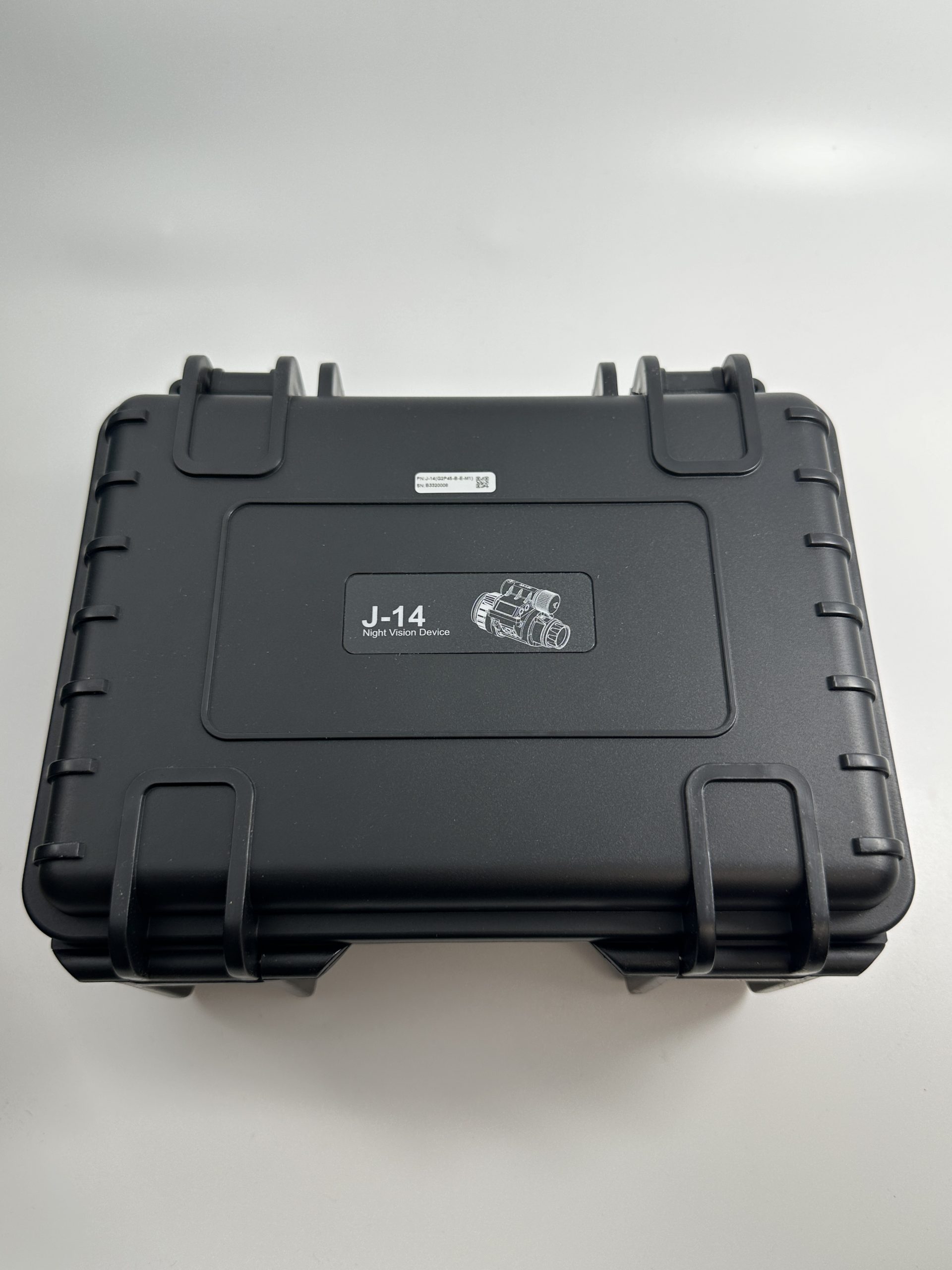

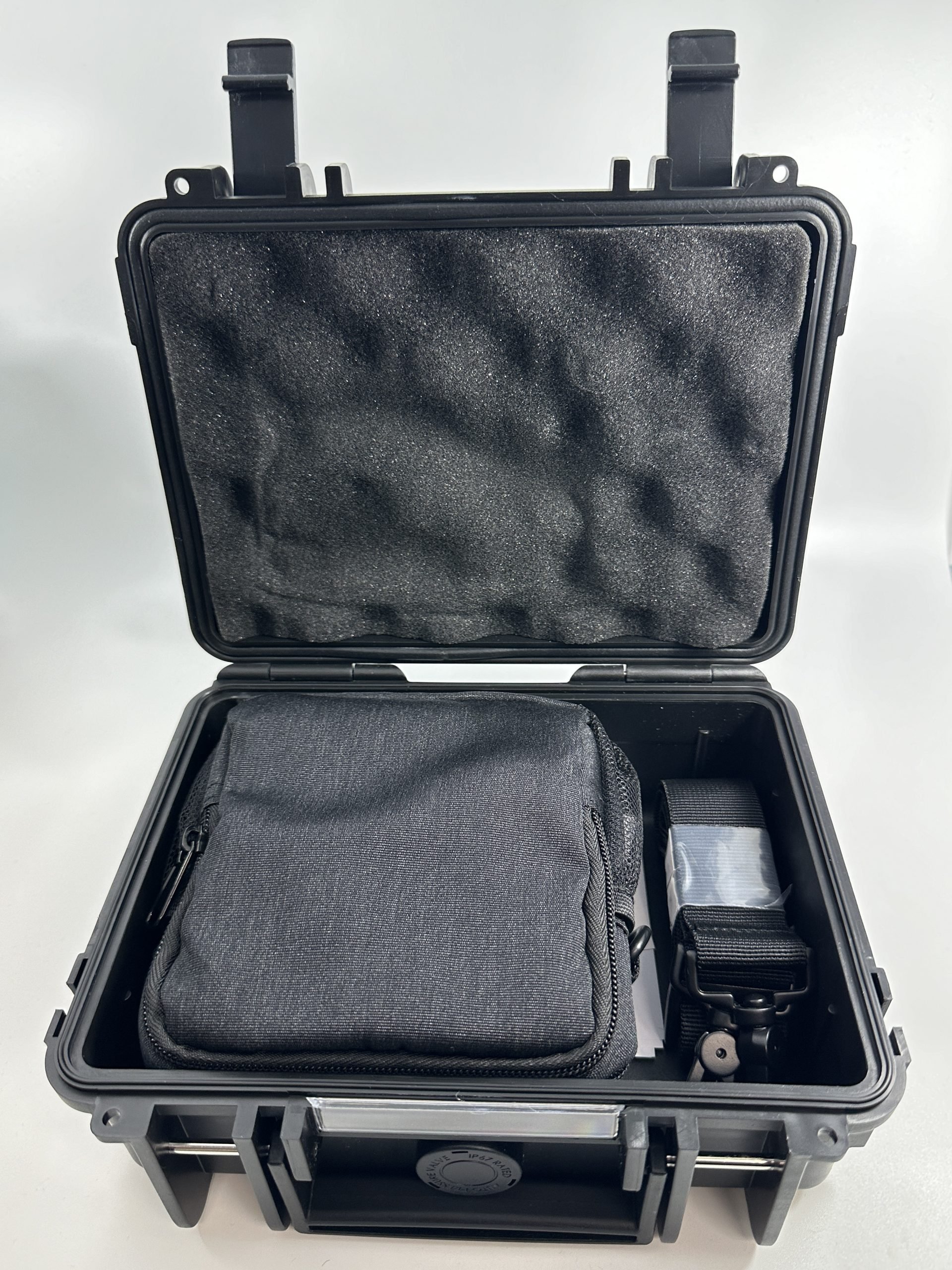

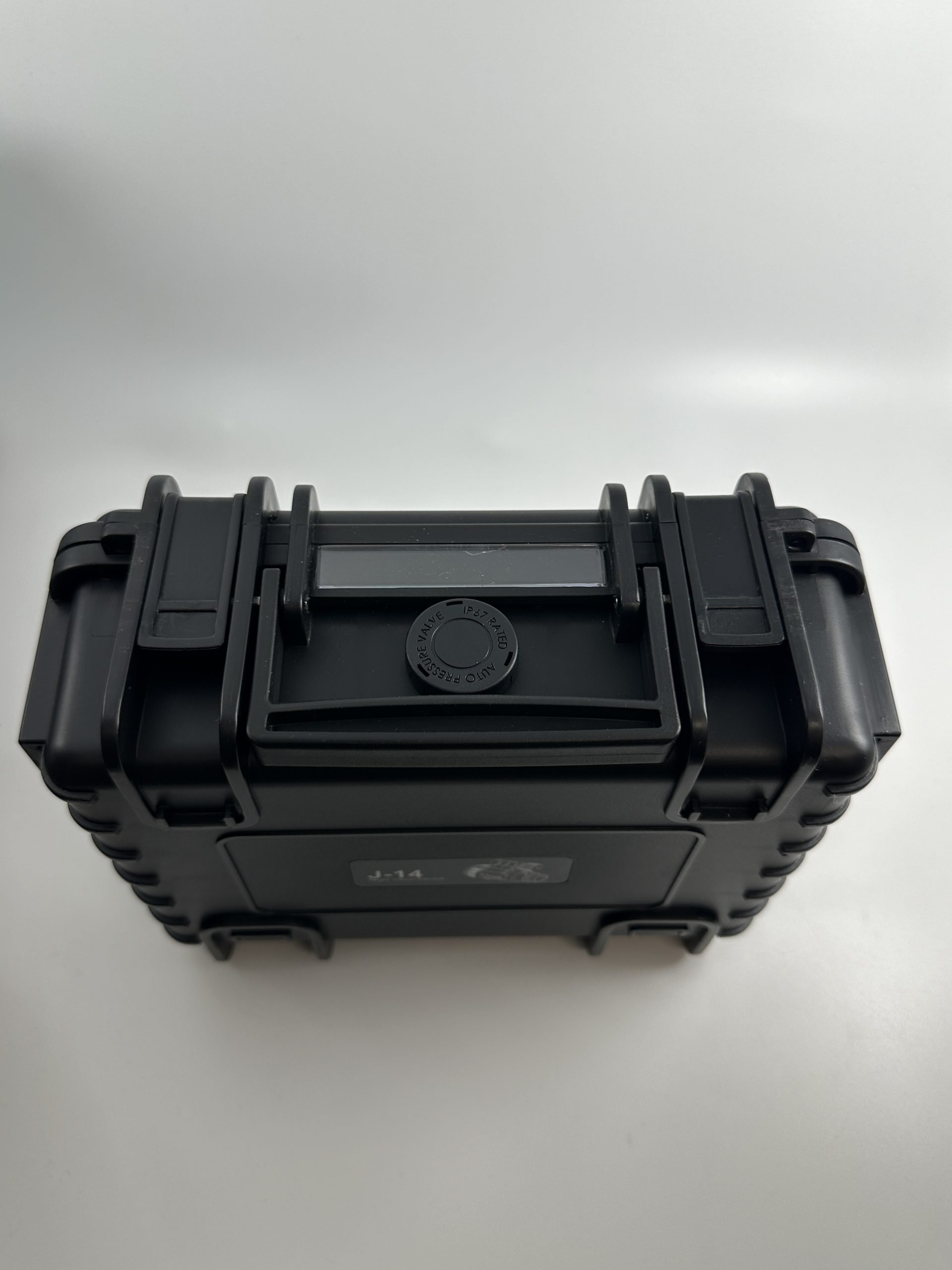

Padded carry case with strap

Unique intensifier spec sheet

Eyecup and eye protection bumpers

Product manual
