L3 Harris NGAL – Next Generation Aiming Laser – Qualified Purchasers Only

We have NGAL Lasers in stock with no wait!

NGL-000-A1 – water proof rated for 1 hour at 20 meters

NGL-000-A7 – water proof rated for 1 hour at 1 meter

**Restricted to active LEO only (we can not sell to Active Mil at this time). Please send credentials from Department E-mail Addres. Devices will only be shipped to authorized department addresses. ITAR and Laser Device Agreements must be signed prior to shipping**

Please contact us at (713) 568-6823 with any questions

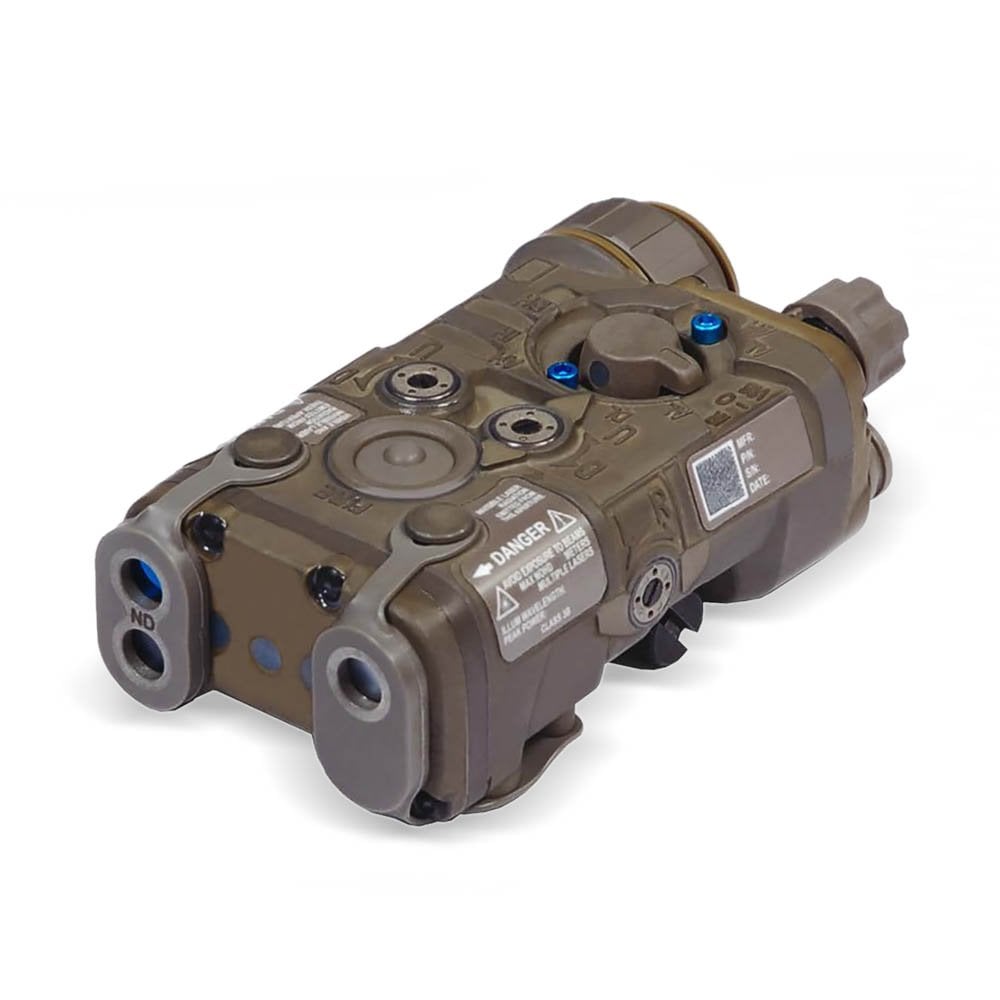

The L3Harris NGAL(Next Generation Aiming Laser) is a rugged, ultra-compact and lightweight system designed to be compatible with all generations of night vision devices. NGAL Lasers use an advanced illuminator design to achieve a more uniform Near Infrared illuminator beam for increased Situation Awareness. High-efficiency electronics support increased system performance at reduced Size, Weight and Power.

FEATURES

> Independent aim and illuminator boresight adjusters

> Co-aligned aiming beams with boresight retention ≤ 0.5 mrad

> Power levels adjustable based on customer requirements

CHARACTERISTICS

Dimensions 3.6 in. L x 2.0 in. W x 1.25 in. H

Weight < 5 oz. with battery

Battery Type (1) DL123 or AA

Battery Life 3.5 hrs. in dual high

Visible Aim Laser Specifications at 25 °C (77 °F) Safety Class

Output Power Low ≤ 4.9 mW 3R

Output Power High ≤ 80 mW 3B

Beam Divergence 0.3 (±0.2) mrad

Wavelength 635 (±15) nm

IR Aim Laser Specifications at 25 °C (77 °F) Safety Class

Output Power Low ≤ 0.6 mW 3R

Output Power High ≤ 35 mW 3B

Beam Divergence 0.3 (±0.20) mrad

Wavelength 840 (+15/-15) nm

IR Illuminator Specifications at 25 °C (77 °F) Safety Class

Output Power Low ≤ 2.7 mW 3R

Output Power High ≤ 90 mW 3B

Beam Divergence ≤ 15 to ≥ 105 mrad

Wavelength 860 (±15/-35) nm
