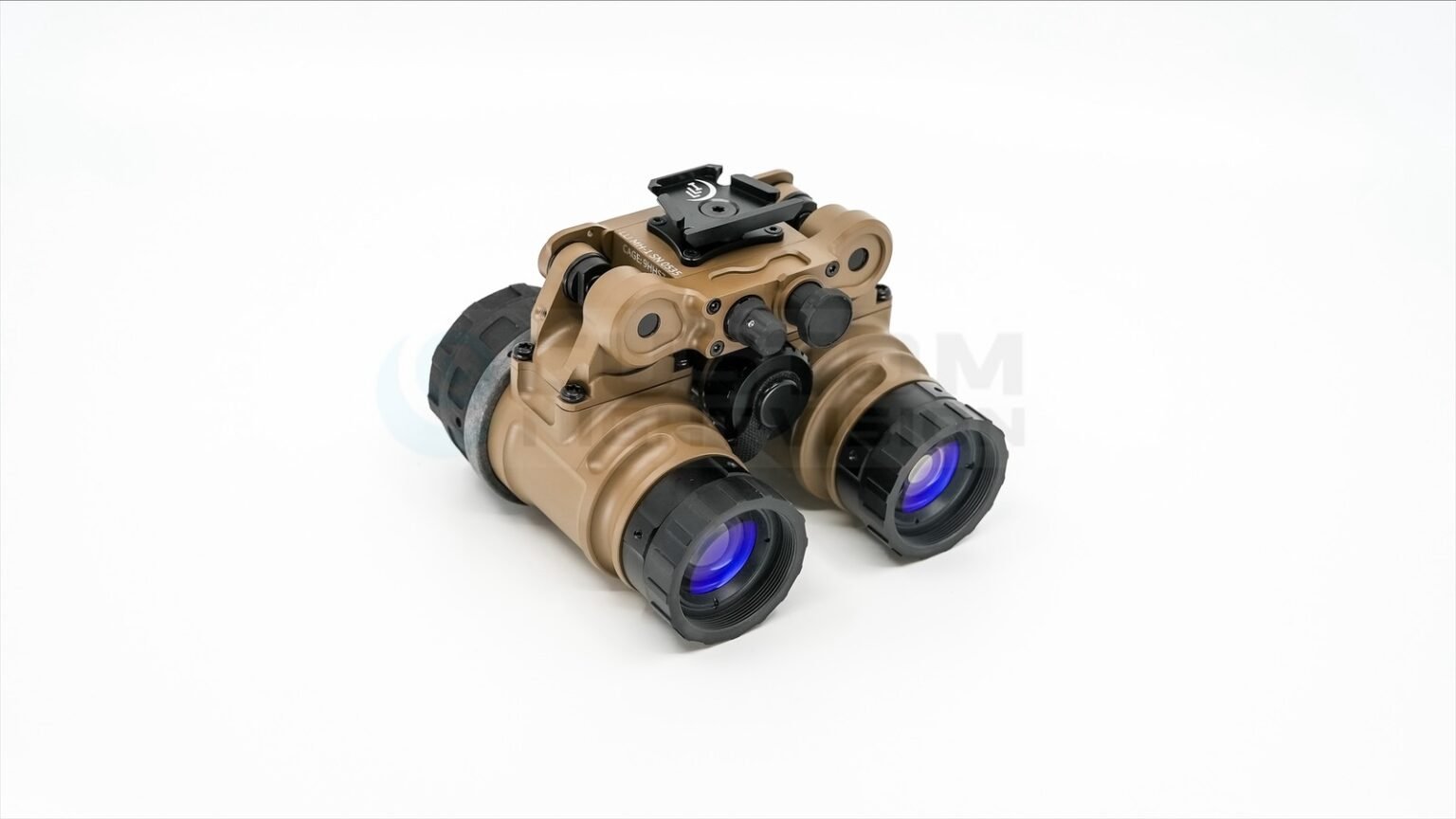

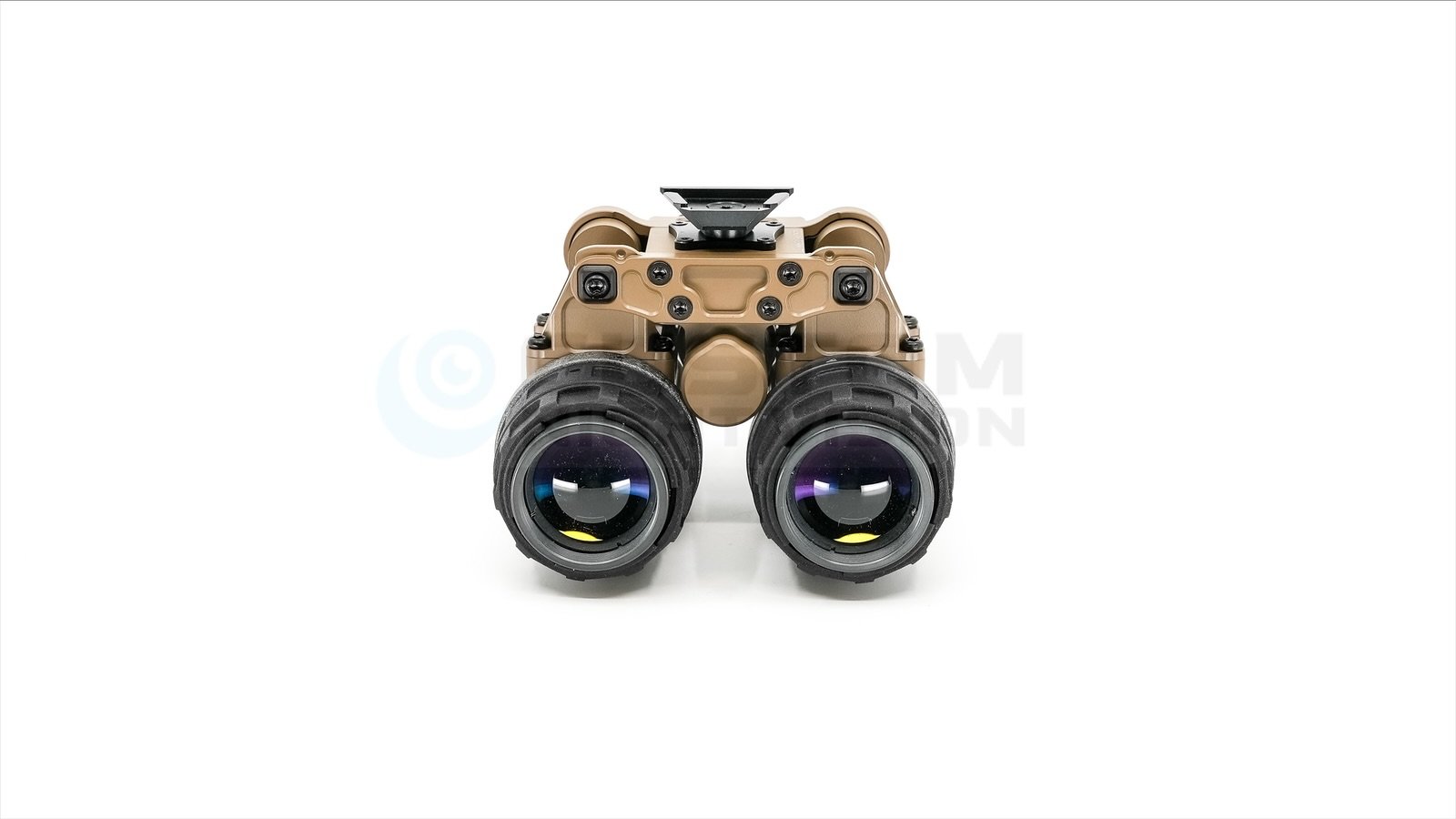

Low Light Innovations MH-1 Manual Gain Articulating Night Vision Goggle

Available in Black, FDE and OD Green.

As of 1/1/2025 all MH-1 housings will have the optional Fischer battery port installed on the housing at NO EXTRA CHARGE.

EAGLE-EYE TACTICAL is a Master Distributor for Low Light Innovations. We offer the MH-1 Night Vision Goggles with the following tube options:

NNVT White Phosphor

Photonis Echo White Phosphor

Elbit White Phosphor

L3Harris 20UA Filmless White Phosphor – Aviation Spec

L3Harris 20UA Supergain Filmless White Phosphor – Aviation Spec

L3 SuperGain Filmless White Phosphor image intensifier tubes increase the Luminance Gain (Gain) specification for image intensifier tubes from the standard 40,000-80,000 fL/fc to between 100,000-120,000 fL/fc. This greatly increases the image intensifier’s ability to amplify and collect light, resulting in a noticeably brighter image with increased low light performance and extending operational envelope and ability to see into dark areas.

Handpicked Option – This is our most popular way of ordering night vision. We maintain a massive inventory of 500+ image intensifier tubes not listed on the website. We will contact you (typically within 24-48 hours of placing your order) with pictures and specs of tubes we select to ask for your approval. If you have preferences on certain specs (ie: SNR, EBI etc…) please include those in your order notes and we will do our best to meet your goal. After customer tube approval the night vision unit will be ready to ship within 1 to 3 business days.

Housing Swap Only Option – Includes prepaid label to send your existing night vision goggle or two monoculars to us. We will swap your tubes and optics to a new MH-1 Manual Gain housing including collimating and purge. All remaining parts will be sent back to the customer with the complete MH-1 Manual Gain goggle.

We offer three choices of Optics

Standard Mil Spec Optics

Rochester Precision Optics (RPO) 3.0 Ultralight

Photonis Defense Boomslang 50 Degree FOV

The Low Light Innovation MH-1 Night Vision Goggles are crafted from aerospace-grade magnesium and titanium alloys, the MH-1 is a perfect blend of ruggedness and lightweight design, tipping the scales at just 15.9 ounces with lightweight optics. The MH-1 is truly modular, allowing users to swap power supplies in minutes, choosing between CR123A, AA, and more. Its modularity extends to the ability to split the device into two monoculars using the upcoming Modular Bridge System (MBS). What sets the MH-1 apart is its manual gain night vision feature, which can be achieved via direct plug-in without any soldering, ensuring your tube’s warranty remains intact.

FEATURE LIST:

Rotational pod shutoff

Manual gain control (4 pin plug-in)

Dual power IR illumination

IPD stops

Modular pods (Ability to split into monos)

Onboard power (Modular)

External power (Modular

Modular mounting platforms (Dovetail/Ball detent)

Adjustable pod tension

SPECIFICATIONS:

POWER SOURCE: MODULAR

FOCUS RANGE: 9.8” TO INFINITY

OPERATION TIME: APPROXIMATELY 25-90 HOURS

MAGNIFICATION: (1X) ONE POWER

FIELD OF VIEW: 40 DEGREES

INTERPUPILLARY ADJUSTMENT: 51 TO 78MM

DIOPTER ADJUSTMENT: -6 TO +2

EYE RELIEF: 25MM

WEIGHT: 460g

WATER RESISTANCE: SUBMERSIBLE TO 66 FT 2 HRS

INTENSIFIER TUBES: COMPATIBLE WITH MX-10160/11769 OPTICS: COMPATIBLE WITH PVS-14 EYEPIECE AND OBJECTIVE
