Noisefighter DMAX14 Metal Night Vision / Thermal Dovetail J-Arm with Rotating Knuckle and IPD Adjustment

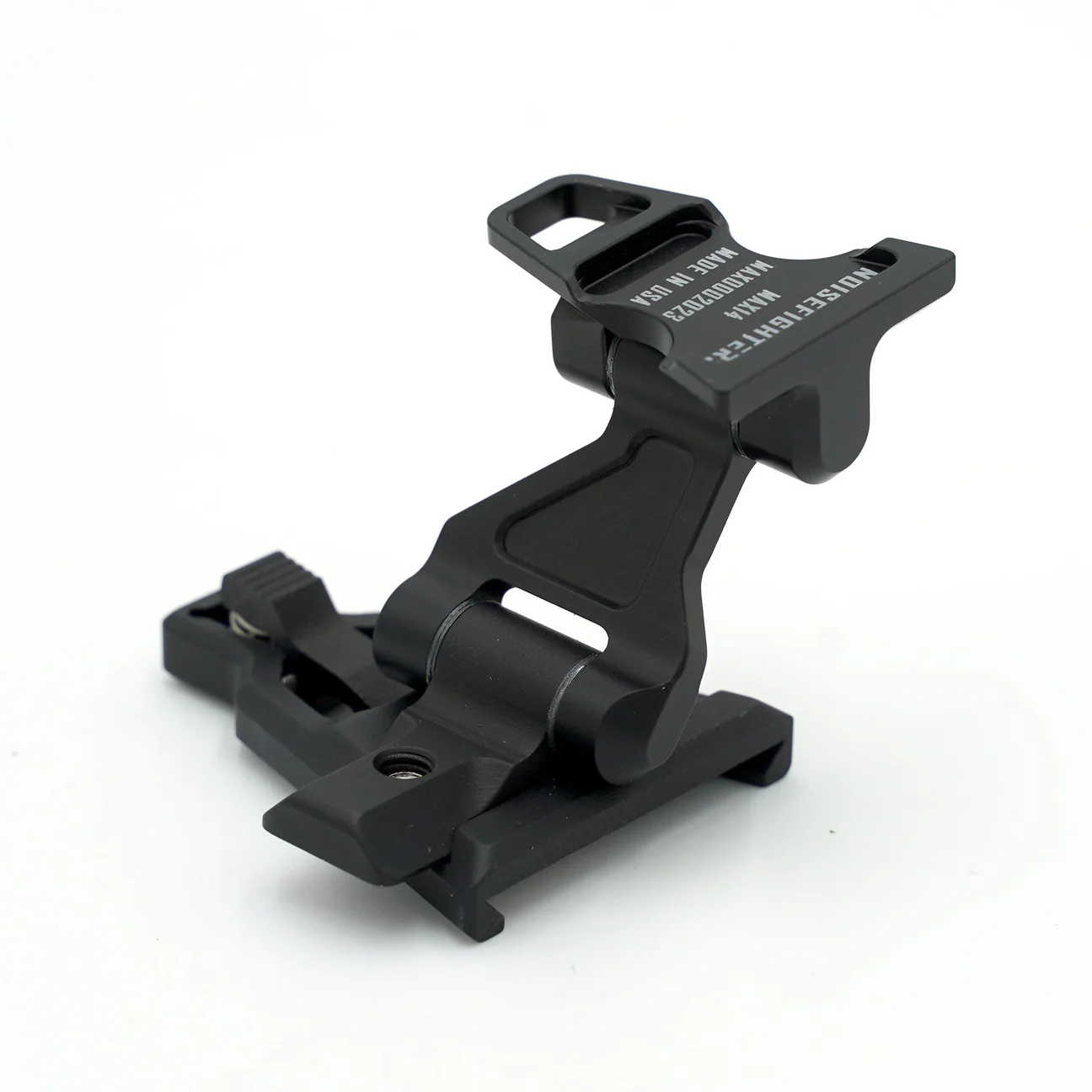

DMAX14™ is a rigid, incredibly lightweight, and all-metal night vision J-arm for dovetail-equipped thermal monoculars such as the Infiray RH25 v2 and Trijicon SkeetIRx. It includes a rotating knuckle which provides a tight stow against the helmet and also allows the monocular to be temporarily swung away from the head eye. At 1.4 oz total, it weighs less than a polymer milspec J-Arm, yet its structure is composed entirely of the highest-performing 7075-T6 aluminum alloy for industry-leading durability.

An intuitive, friction-based mechanism allows users to swing their monocular in front of either the left or right eye and perfectly adjust for interpupillary distance, while a slight rearward sweep of the inner arm helps position the monocular eyepiece closer to one’s eye and provides greater compatibility for those with larger helmets. A tether point is also featured on the rear to keep the entire system secure. Attach a monocular, snap the complete assembly into a dovetail-style helmet mount like the Wilcox® G24, and enjoy. Introducing the new industry standard in night vision monocular mounting.

A no-questions-asked, transferable lifetime warranty is included. The Noisefighters DMAX14 is proudly made and assembled in the U.S.A. and was designed by a Marine Corps combat veteran of Iraq and Afghanistan.

CONSIDERATIONS TO ACCOUNT FOR WHEN USING THIS PRODUCT:

This arm is NOT COMPATIBLE with bayonet-style night vision helmet mounts. You MUST HAVE a dovetail-type night vision helmet mount.

No auto-shutoff system is integrated. Users must manually turn off the monocular when articulating or flipping up and stowing equipment on top of the helmet.

SPECIFICATIONS:

COMPATIBLE WITH: ALL KNOWN THERMAL MONOCULARS USING THE DOVETAIL INTERFACE

HELMET MOUNTING COMPATIBILITY: DOVETAIL

INTERPUPILLARY DISTANCE (IPD) COMPATIBILITY: 55 – 75mm

TOTAL ASSEMBLED WEIGHT OF THIS PRODUCT: 1.4 OZ

DIMENSIONS: 3.5 x 1 x 1.25″

COMES WITH: ARM, 3/32″ BIT

WARRANTY: LIFETIME, TRANSFERABLE

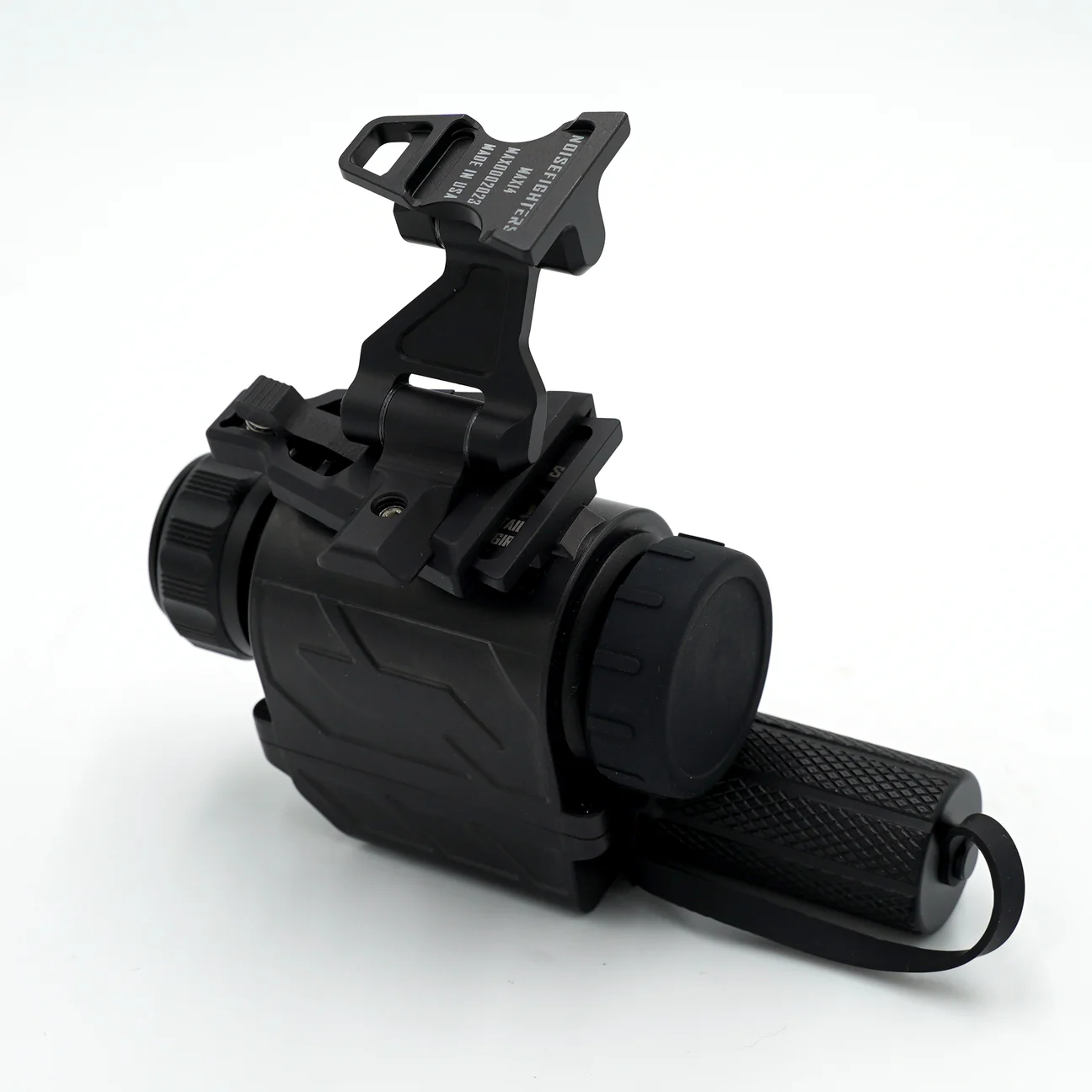

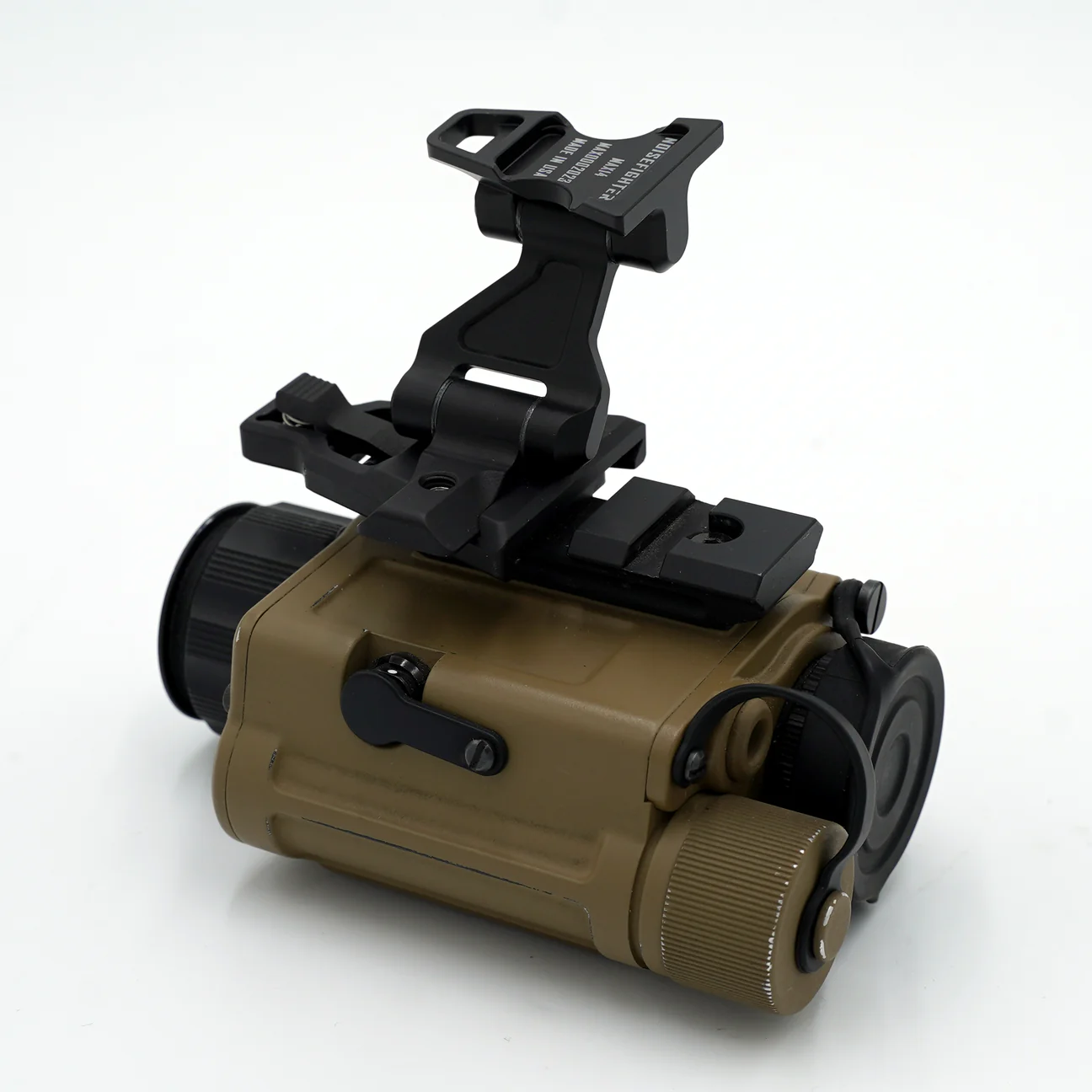

NIGHT VISION / THERMAL DEVICES SHOWN IN PICTURES ARE NOT INCLUDED

MADE AND ASSEMBLED IN THE U.S.A. BY A DISABLED U.S.M.C. COMBAT VETERAN OWNED COMPANY

THIS ITEM IS SUBJECT TO EXPORT ADMINISTRATION REGULATIONS (EAR)
