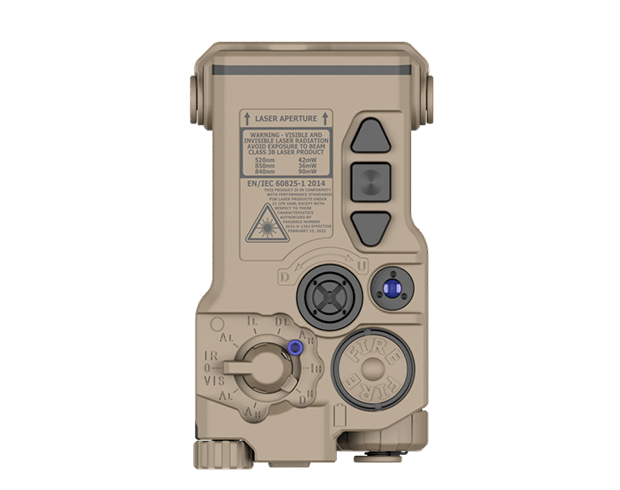

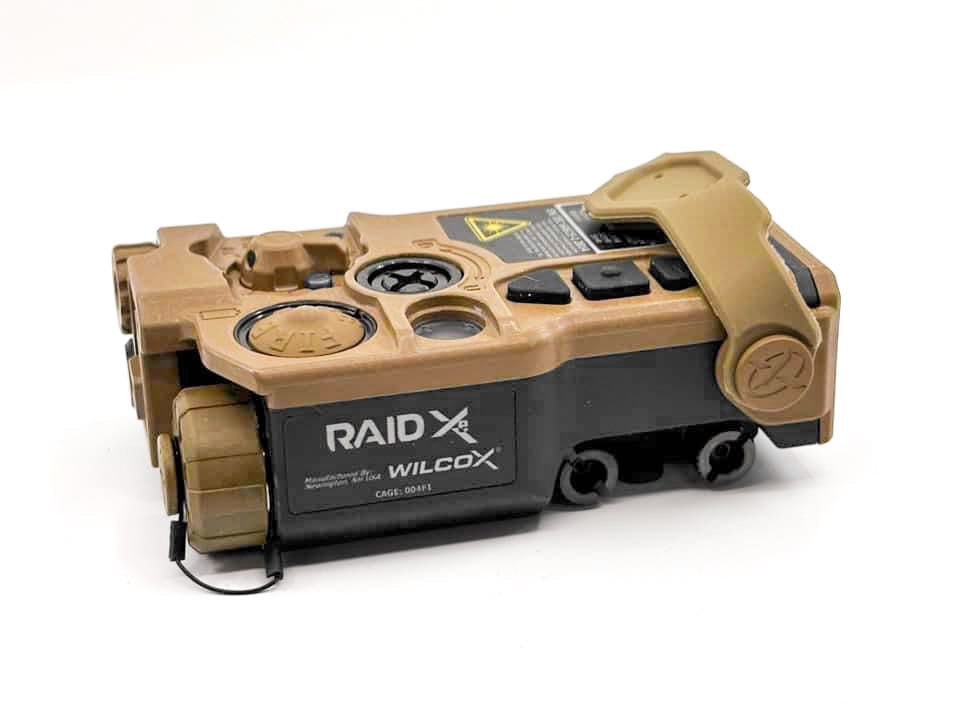

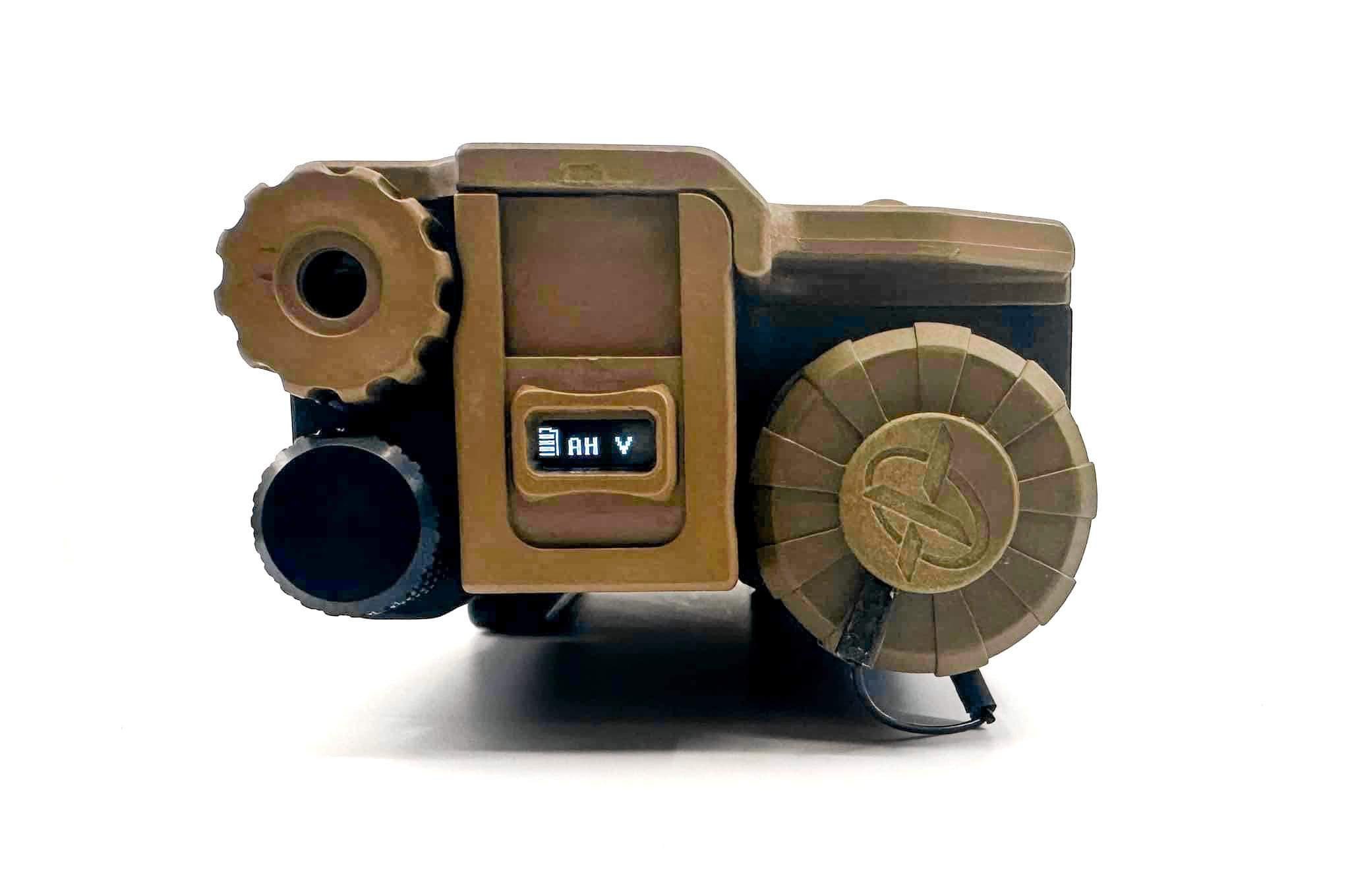

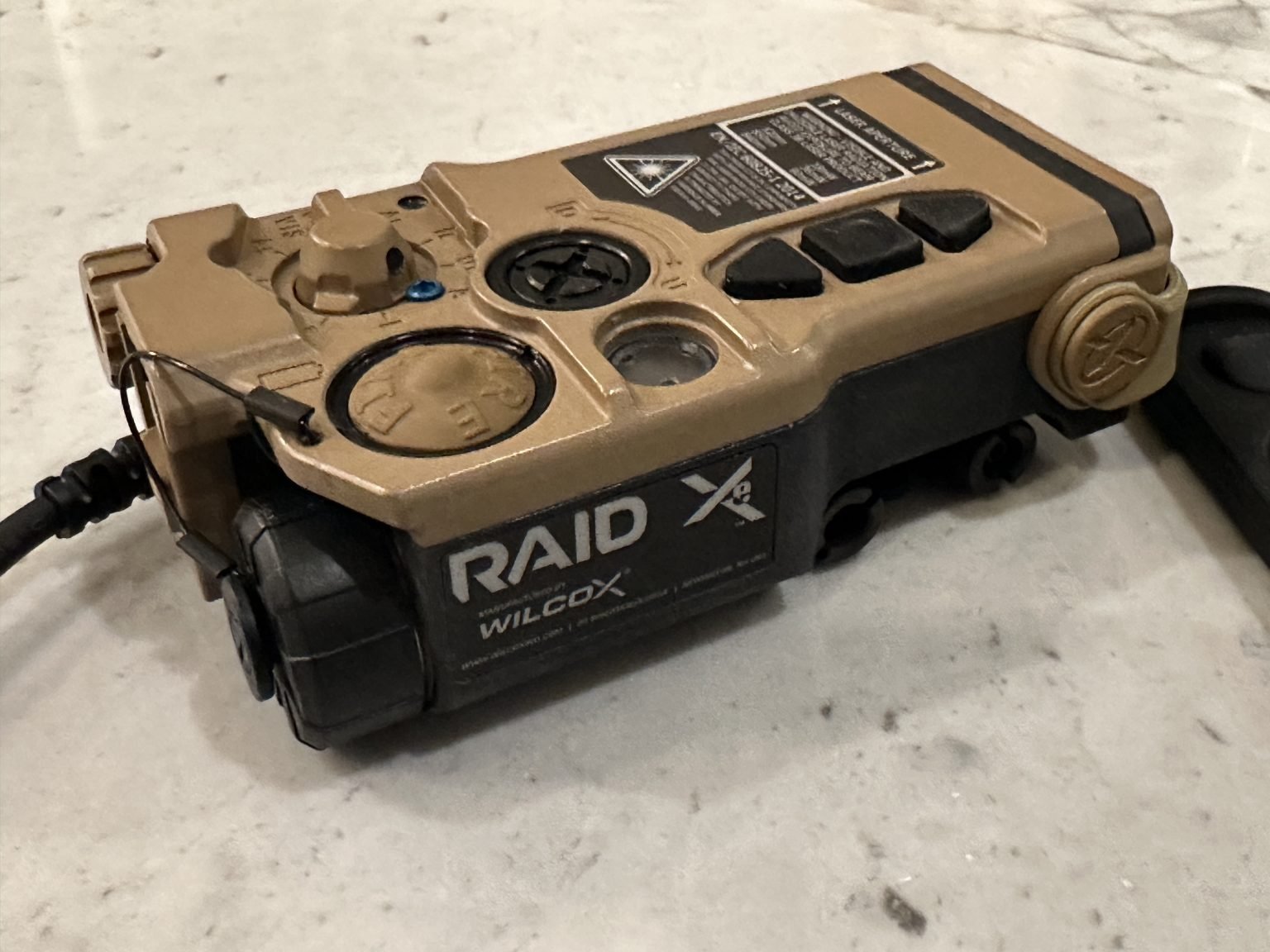

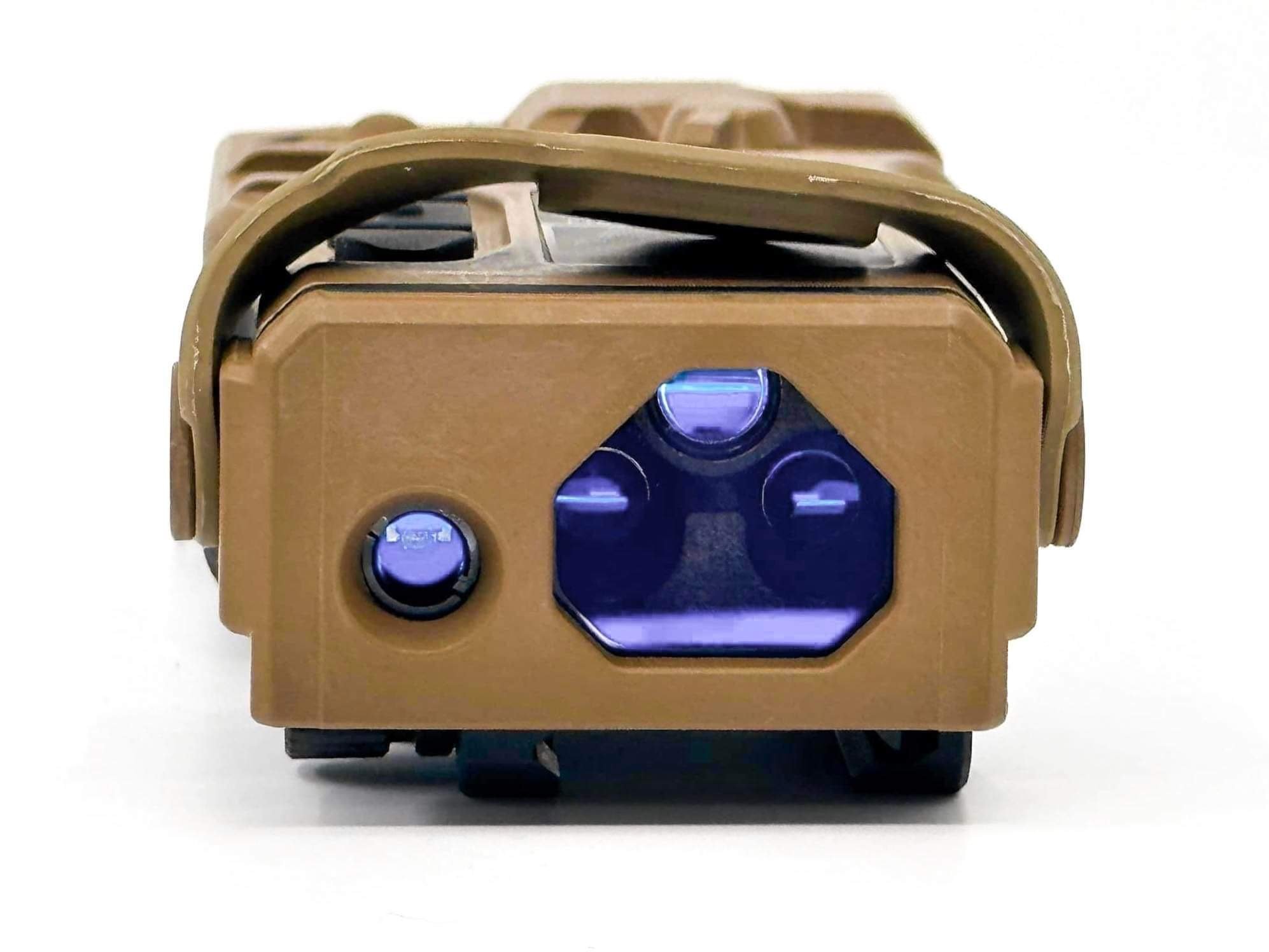

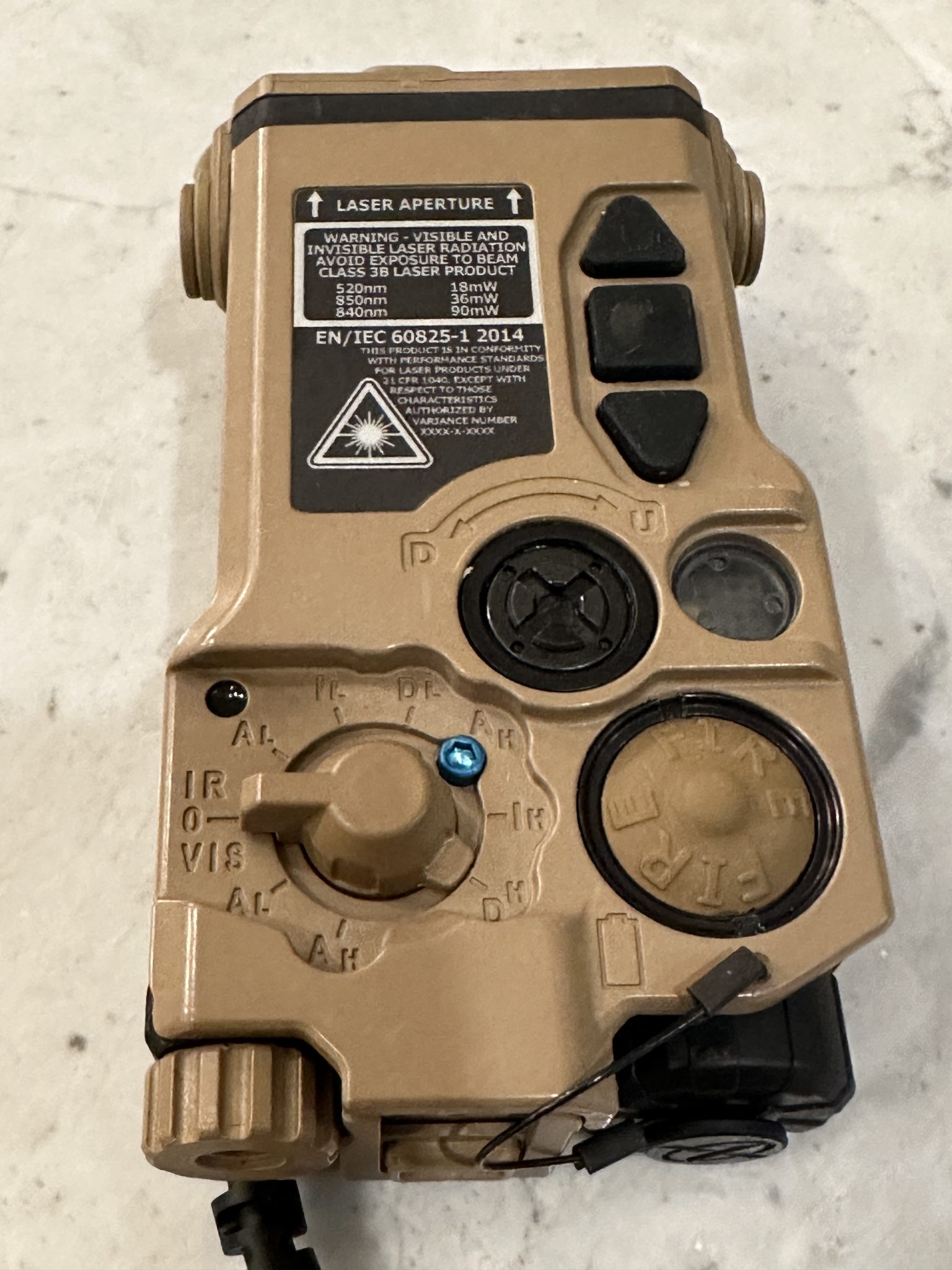

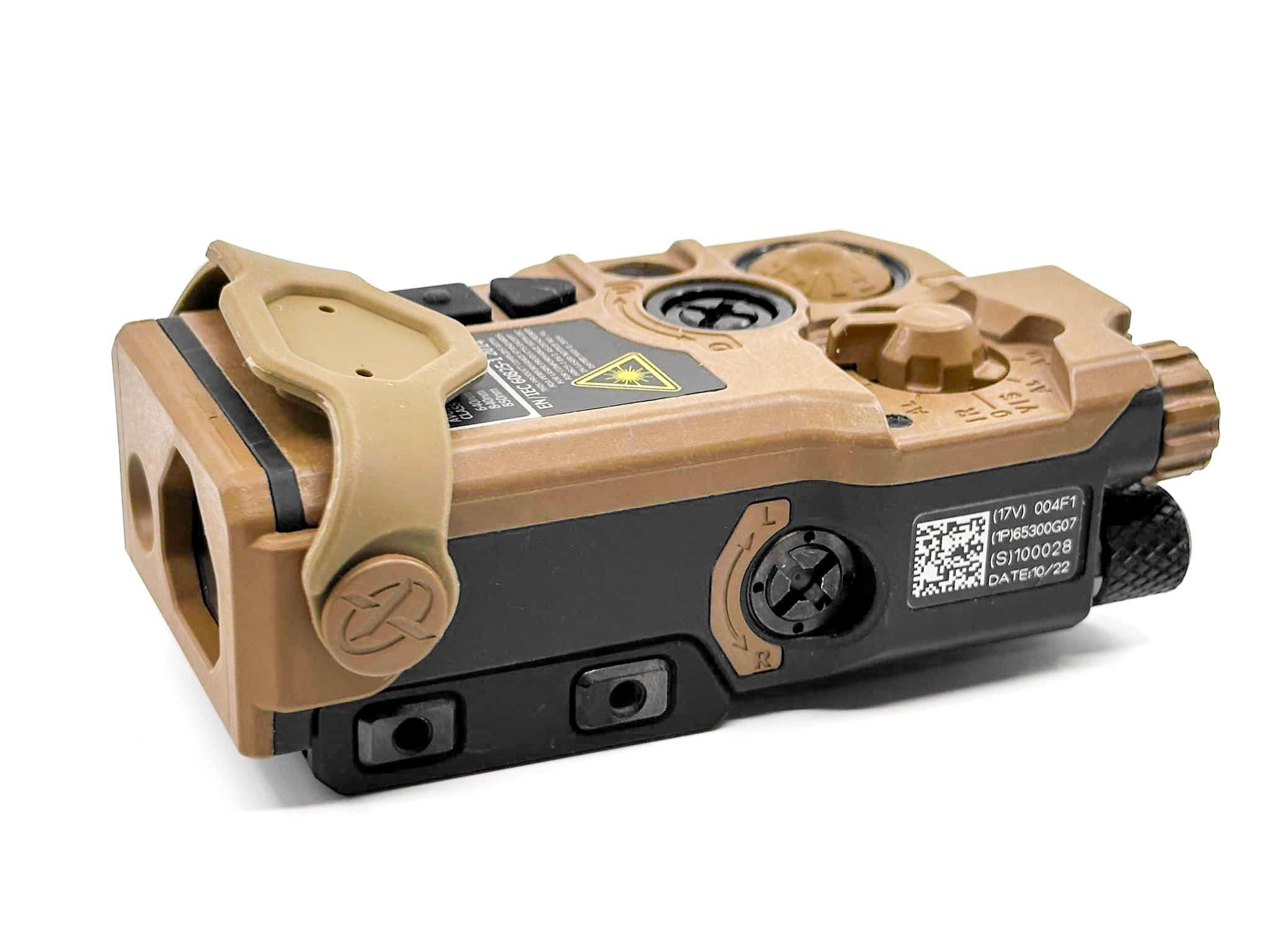

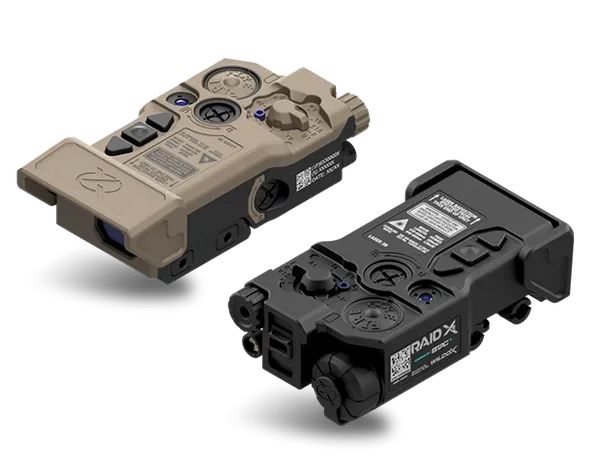

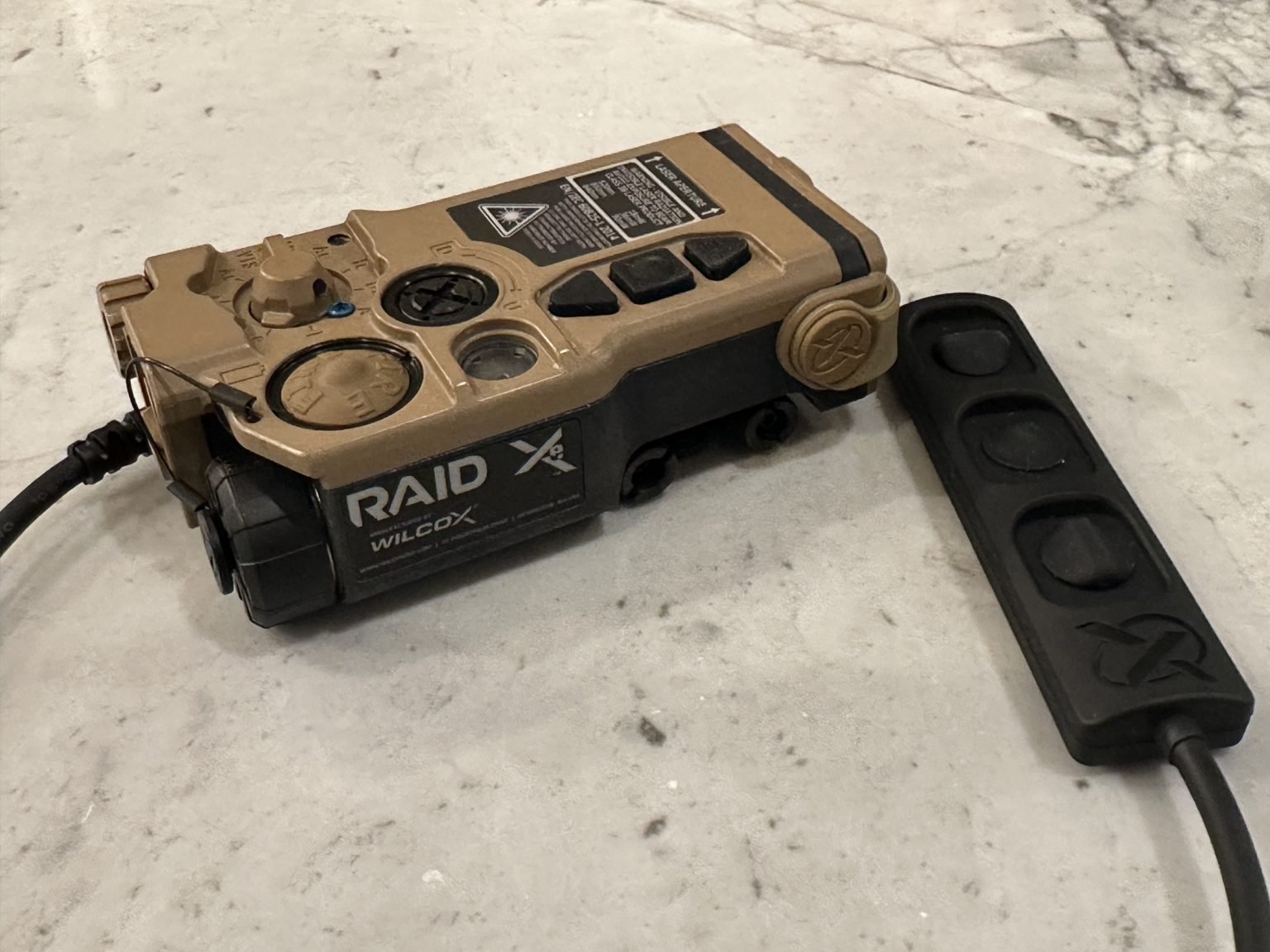

Wilcox Industries RAID Xe Next Gen Laser – High Power – Restricted – Wilcox Connector

**Restricted to active LEO only through department purchase orders. Please email us to obtain department pricing. **

The Wilcox RAID Xe™ high power is a laser aiming device designed specifically for the military and law enforcement markets. The RAID Xe high power is a smaller, lighter, stronger laser aiming device offering superior, uncompromising performance. The NIR room illuminator combined with the variable NIR VCSEL illuminator features best in class overall effective tactical solution in any low light combat situation.

The ultimate in beam clarity and uniformity with extraordinary reduction in illuminator speckle, RAID Xe increases the operator’s effectiveness and situational awareness.

The Wilcox RAIDTM XeTM is the next generation in the RAID line of products. As a class 3B high power laser aiming device, the RAID Xe is designed specifically for the military and law enforcement markets. The Wilcox RAID Xe high power provides a smaller, lighter, stronger laser aiming device with superior, uncompromising performance. The ultimate in beam clarity and uniformity with extraordinary reduction in illuminator speckle, RAID Xe increases the operator’s effectiveness and situational awareness.

This product is available in either red or green laser configurations. The NIR room illuminator combined with the variable NIR VCSEL illuminator features best in class overall effective tactical solution in any low light combat situation. The ergonomic illuminator spool location allows easy rapid adjustment of the NIR illuminator beam divergence for variable distances and mission requirements.

Wilcox has set the standards for optical performance in beam clarity and uniformity with extraordinary reduction in illuminator speckle, aiding in increasing the operator’s effectiveness and situational awareness.

When the RAID Xe product is securely mounted on any Picatinny style 1913 rail, it provides rock-solid boresight retention to the host due to Wilcox’s unique single windage and elevation adjustment feature and factory co-aligned lasers and illuminators. The RAID Xe product can be used on multiple host platforms. The RAID Xe has a very low-profile stance that does not interfere with most optics or iron sights.

FEATURES & BENEFITS

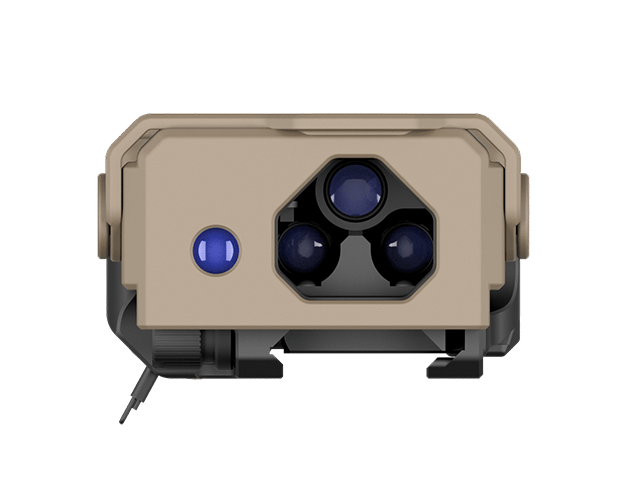

■ One optical bench houses either red or green VIS laser, and NIR laser

■ NIR VCSEL illuminator and wide angle NIR Room illuminator project precise, speckle-free beams for extreme clarity and optimal combat identification

■ NIR room illuminator provides 40 degree flood capabilities

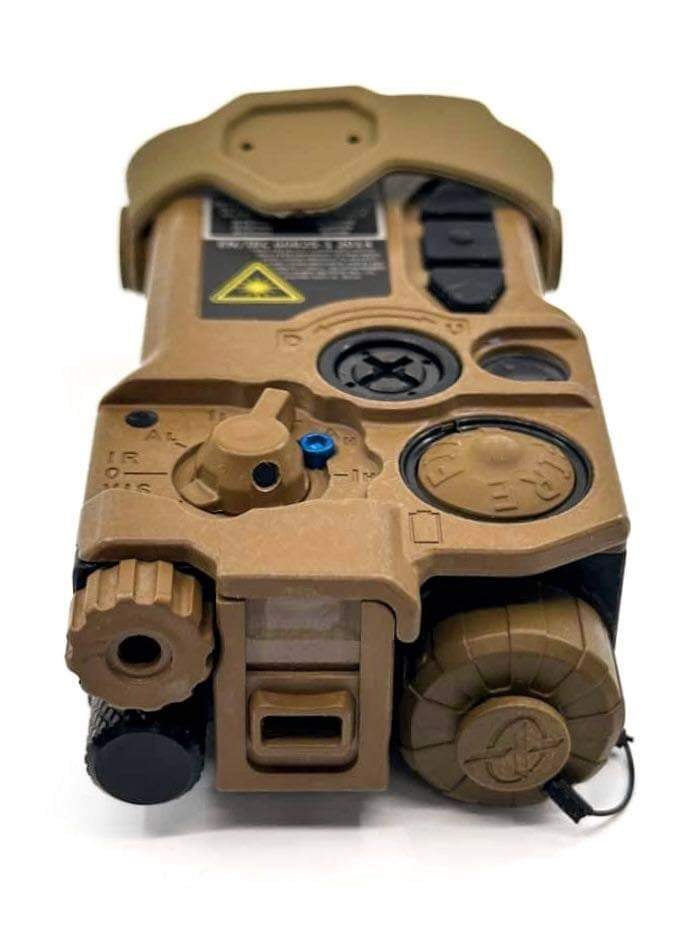

■ Optical bench is aligned to host by one windage and one elevation adjustment

■ Powered by one (1) CR123 3V battery

■ Mounts to any 1913 Picatinny rail secured by 2 shock nuts

■ Multi-function keypads provide flexibility in programing custom options

■ Five (5) selectable pulse modes on VIS/NIR lasers settings

■ On-the-fly laser brightness adjustment

■ Security tethered loop tie down

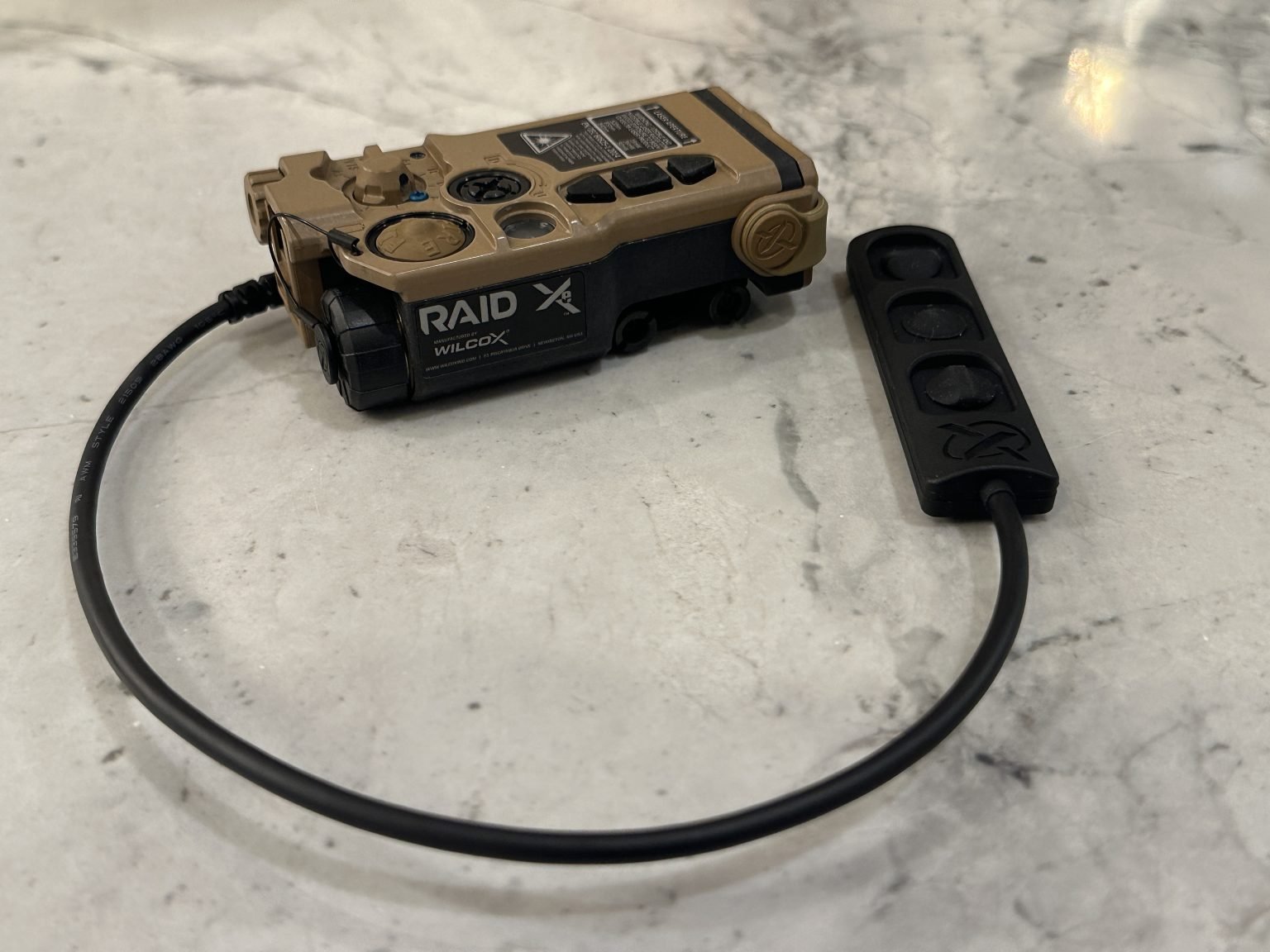

■ Remote port accepts Wilcox line of ERGOCTOTM XeTM Activation Keypads and ERGOCTO Xe Control Grips (optional)

SPECIFICATIONS – HIGH POWER

Immersion: Boresight Retention: 1 meter for 1 hour <.5 mrad

Laser Type/Wavelength/Power*:

Red Visible Laser/660nm/75mW

Green Visible Laser/520nm/35mW

Infrared Laser/850nm/30mW

Infrared Illuminator/ 840nm/min 50mW

Models:

65300G10-B – Black Housing / Red Laser

65300G10-C – Tan Housing / Red Laser

65300G11-B – Black Housing / Green Laser

65300G11-C Tan Housing / Green Laser
